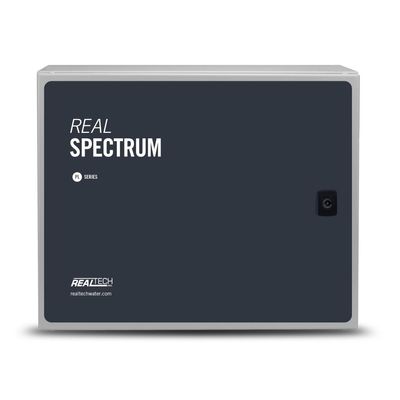

Real Tech - Model PL Series -Spectrum Sensor
Real Tech’s data-rich bypass Spectrum sensor provides real-time measurement of a wide array of parameters and compounds in water or wastewater. The Spectrum sensor utilizes UV-VIS light between 190-750 nm for measurement, continuously scanning the water every minute of every day collecting hundreds of data points. Designed to meet the needs of many monitoring applications, the PL series offers multiple flow cell designs and sensor path length selections for the desired measurement range.
LIQUID AI COMPATIBLE
Our Liquid Ai data services complement our real-time water quality monitoring systems. Calibration Health Monitoring ensures accuracy and reliability are maintained so our clients can have the utmost confidence in their results, while our Remote Monitoring platform enables access to data anywhere, anytime.
Parameter(s): BOD, COD, TOC, DOC, UV254, UVT, TSS, nitrate, nitrite, nitrite & nitrate, algae, permanganate, monochloramine, colour, dyes, pesticides, polymers, oil in water, diesel fuel, BTEX, surfactants, soaps, black liquor, H2S, O3, THM, HAA, contaminant alarms, hydrogen peroxide, spectral fingerprint, custom alarm
- Highly accurate real-time water quality information
- Data rich, full scanning UV-VIS sensor (190-750 nm)
- Wastewater to high purity measurement ranges
- Bypass style sensor with multiple flow cell selections to meet application demands
- Simple optical measurements, no reagents
- Multiple parameter configuration available
- Source Water Monitoring
- Contaminant Removal Efficiency
- Nitrification Monitoring
- Smart Water Networks
- Sewage Monitoring
- Chemical Dose Optimization
- Aeration Optimization
- Advanced Treatment Monitoring & Protection
- Effluent Pollution Management
- Process Water Control
- Cooling Water Contamination
- Boiler Feedwater Impurities
- Ultrapure Water Monitoring
- Product Loss Monitoring
- Water Reuse Optimization
- Chemical Dose Optimization
- Aeration Optimization
- Nutrient Dose Optimization
- Advanced Treatment Monitoring & Protection
- Industrial Effluent Discharge Management
Characteristic: Technical Data
- Path Lengths:
- 0.5, 1, 2, 4, 10 mm (1000 series)
- 1, 2, 4, 8 mm (2000 series)
- 25, 50 mm (4000 series)
- Parameters: BOD, COD, TOC, DOC, UV254, UVT, TSS, nitrate, nitrite, nitrite & nitrate, algae, permanganate, monochloramine, colour, dyes, pesticides, polymers, oil in water, diesel fuel, BTEX, surfactants, soaps, black liquor, H2S, O3, THM, HAA, contaminant alarms, spectral fingerprint, custom alarm
- Range : Depends on model selected. Refer to range chart
- Units: Parameter specific (mg/L, cm-1, % or PCU)
- Sampling Time: 1 minute
- Calibration: Factory calibrated. Field adjustment of calibration is possible.
- Cleaning: In-situ chemical cleaning makes cleaning quick and easy. Automatic chemical cleaning is optional.
- Self-Diagnostics: Detection and diagnosis of internal system fault
- Alarms: Dry contact terminals allow for operator configurable alarms for: high and low set points, low lamp output, leak detected, system fault, etc.
- Humidity Control: Humidity sensor with large plug-in regenerating desiccant system
- Wavelengths: Full scanning between 190-750 nm
- Light Source: Deuterium and Tungsten
- Lamp Life: 4000 hrs. each
- Flow Rate:
- 500 - 1000 mL/min (1000 series)
- 300 - 1000 mL/min (2000 and 4000 series)
- Pressure Rating:
- 85 PSI maximum (1000 series)
- 20 PSI maximum (2000 and 4000 series)
- Fluid Connections:
- 3/8" OD tube push-in fittings (1000 series)
- 1/4" OD tube push-in fittings (2000 and 4000 series)
- Wetted Materials:
- Kynar, FEP, Quartz, SS316L, Viton (1000 series)
- Kynar, Polyethylene, Quartz, SS 316L, Viton (2000 and 4000 series)
- Electrical/Comm.: From Real Controller Pro
- Ambient Temp.: -20 to 60°C (-4 to 140°F)
- Water Temp.: 0 to 35°C (32 to 95°F) at 21°C (69.8°F) Ambient temperature
- Enclosure: NEMA 4, wall mountable
- Weight: 44 lb
- Dimensions: 19.0"H x 20.5"W x 9.0"D
- Warranty: 2-year limited warranty (Extended care packages available)
- Sensor Upgrades: Cooling Upgrade I, Cooling Upgrade II
* Technical Specifications are subject to change without notice.
* Water temperature range based on material compatibility only. Contact Real Tech to verify application.
