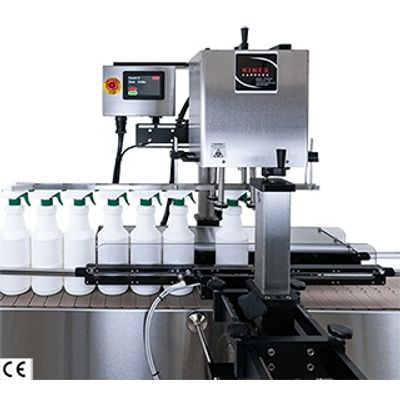

Kinex - Model Versa-Max -Spindle Capper Machine
The Versa-Max™ spindle capper machine tightens all types of screw-on caps, from standard caps to trigger spray caps, at speeds of up to 50 caps per minute. We designed the Versa-Max™ spindle capping machine to provide our customers with an inline capping machine that is easy to setup, easy to adjust, and easy to use. Before the Versa-Max™, spindle cappers had a well-deserved reputation for being difficult to use. They required a lot of tinkering and tweaking by experienced service technicians in order to achieve a tight cap. The Versa-Max™ spindle capping machine has put an end to this frustration. The Versa-Max™ provides outstanding grip on the cap and as a result, setup is fast and easy, and you can tighten your cap with as much torque as you would like with outstanding torque repeatability.
The Versa-Max™ inline spindle capper machine features a touchscreen display and easy to navigate menu. It displays real time production information, including the number of caps it has tightened and the production rate in bottles per minute. All program adjustments are at your fingertips to provide you with complete control over the capping machine. Capping programs can be saved and stored for future use.
The Versa-Max™ Inline Capping Machine offers unbeatable versatility. It tightens caps from 15mm – 130mm in diameter onto bottles ranging from 0.75 to 12 inches wide. It applies all styles of plastic and metal threaded caps. Due to their extreme flexibility, spindle capper machines are used in the cosmetic industry, food and beverage industry, chemical industry, pharmaceutical industry and many others.
- Up to 50 Bottles Per Minute
- Stainless Steel and Anodized Aluminum Construction
- Easy to Set-up. Easy to Adjust
- Touchscreen Display & Navigation
- Easy to Navigate Menu
- Calculates and Displays the Production Rate (Bottles/Minute)
- Counts and Displays the Number of Bottles Capped
- Saves and Stores Capping Programs for Future Use
- External Torque Adjustment Dial
- Excellent Repeatable Torque Accuracy
- The Versa-Max™ spindle capper machine is CE marked (CE Certified)
Price: $19,950
Buy Now
Minimum Cap Size: 15mm
Maximum Cap Size: 130mm
Torque Range: 0-100 inch pounds
Min Bottle Width: 0.75 inches
Max Bottle Width: 12 inches
Min Bottle Height: 2.25 inches*
Max Bottle Height: 17 inches
Height: 64.2 inches
Width: 30 inches
Depth: 39.6 inches
Weight: 170 lbs.
Air Requirements: 90-125 PSI @ 12 SCFM
Electrical Requirements: 100-240VAC, 50/60HZ. Single Phase
