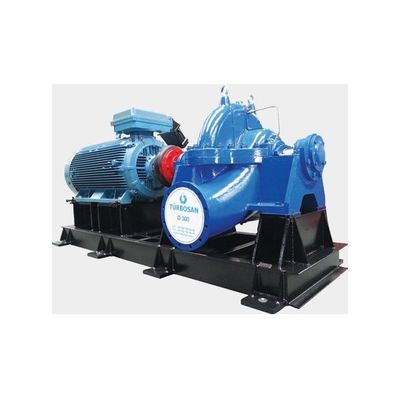

Turbosan - Model CEP Series -Split Case Pump
The Turbo-CEP series pumps designed for general purposed are made of double enrty, single state with casing axialy split.
Most popular related searches
split case pump
split case
pump component
fire fighting
pump station
cooling water
water supply
urban water supply
cooling water circulation
urban water
- Irrigation pump stations,
- Cooling water and circulation,
- City, town water supply,
- Fire fighting sets,
- Iron & Steel plants,
- Power plants,
- Paper and pulp industry,
- Chemical and petrochemical plants.
STANDARD MATERIAL SPECIFICATION
- Casing, impeller Cast iron
- Wear rings Cast iron
- Shaft C-1040 Carbon steel
- Shaft sleeve Stainless Steel
- Salmastra Gland packing or mechanical seal
- Rulman FAG/SKF Grease lubricated
- Operating temperature -10 °C ÷ +120 °C
* All pump components can be manufactured in variety of materials according to properties of pumped medium.
PERFORMANCE DATA
- Capacity (l/s) 5 – 3000
- Discharge head (m) 10 – 175
- Pump discharge size (mm) Ø65 – Ø700
