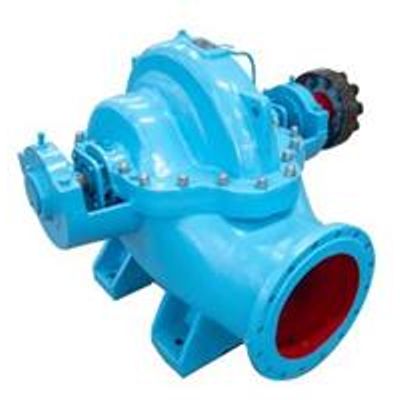

Model COS -Split Case Pump

• Flow: 50 - 20,000 m3/h
• Head: 7-220m
• Outlet Dia.: 80-1,600mm
• Working Pressure: ≤ 2.5Mpa

Product description: axially split case centrifugal pump,single-stage, double suction, foot mounted, applied for general water supply, booster service, municipal waterworks, condenser cooling etc.

1. The axially split design allows easy removal of the top casing and access to the pump components (bearings, wear rings, impeller, and shaft seal) without disturbing the motor or pipe work.
2. The independent bearing housing allows for ease of maintenance without removing the top casing. The double volute design reduces the radial load on the shaft, extending component life, minimizing vibration and providing quiet operation.
3. The pump also offers high efficiency throughout the range. High energy efficiency along with long pump working life and easy maintenance add up to low life-cycle costs.
4. The split case pump is available with a liquid cooled sleeve bearing which promotes longer life and reduces maintenance.

• Flow Capacity: 50 - 20,000 m3/h
• Delivery Head: 7-220m
• Outlet Diameter: 80-1,600mm
• Working Pressure: ≤ 2.5Mpa
• Liquid Temp.: 0℃-80℃

Materials

• Cast Iron, S.S 304, S.S 316L, Ductile Iron, Cast Steel, Duplex S.S 2205 et

• General residential & industrial water supply & transferring;
• Agricultural irrigation & drainage, Flood discharge & Emergency drainage;
• Civil water treatment, Waterworks, Sea water desalination;
• Air-conditioning, Fire-fighting facilities, High building water supply;
• Oil & Gas & Chemical processing, Abrasive liquids transferring;
• Power plant water circulation, Cooling tower & Hot water transferring
• Mining, Boiler feeding, etc.
