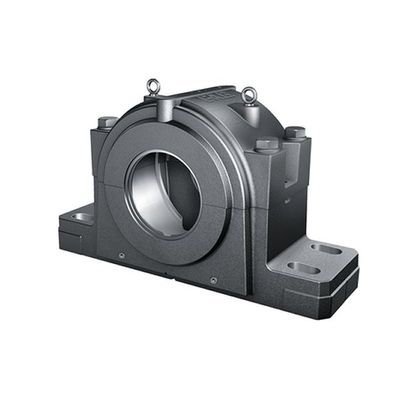

Schaeffler Medias - Model FSAF515X0207U -Split Plummer Block Housings

Main Dimensions & Performance Data

• 61,912 mm : Shaft diameter inch
• 61,913 mm : Shaft diameter
• 285,75 mm : Lenght foot
• 161,925 mm : Total height
• 117,475 mm : Width housing body
• 10,6 kg : Weight

Dimensions

• 79,375 mm : Width foot
• 28,575 mm : Height foot
• 130 mm : Outside diameter bearing
• 2,997 mm : Offset Bearing centre
• 82,55 mm : Distance shaft axis
• 37 mm : Width bearing seat
• 231,775 mm : Distance mounitg holes
• 47,625 mm : Width bore spacing
• 12,7 mm : screw size
• 15,875 mm : Width oblong hole
• 12,7 mm : Lenght oblong hole
