Model LC50R -Spray Gun

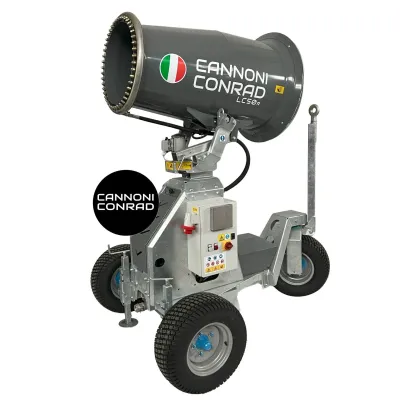

The CONRAD LC50R is a 50 m spray gun ideal for abating dust during demolition activities, also appreciated as a support in aggregate recycling plants to control dust exiting conveyor belts and screens for separating inert materials. The LC50R has a range of 50 m and a coverage of approximately 7,500 m², thanks to its PLC for automatic rotation control that is programmable up to 340°. The truck equipped with 3 pneumatic wheels, 2 stabilisers and a drawbar makes the CONRAD LC50R very manoeuvrable even on the roughest terrain.
NEBULIZER CANNON PERFORMANCE TABLE:
Range: 50 m
N. Nozzles: 45
Rotation: 340° automatic with integrated PLC
PLC automation: Water pump switch-on, Fan switch-on, Sleep/Work function, Rotation setting from 0° to 340°, Daily and weekly timer
Inclination: -20° +45°manual
Pressure: 10-15 bar
Water Consumption: 33 l/min
Fan power: 5 kW - 400V - 50Hz
Total installed power: 7.9 kW
Noise: 70 dB
IP: 55
Covered Area: 7500 m²
Ø FAN: 500 mm
Water Filter: Inspectable stainless steel filter
Filtering capacity: 100 µm
Water pump included: Self-priming vertical multistage centrifugal electric pump for gravity operation. No inlet water pressure required
Water connection: 1 ½ " - Camlock
Electrical connection: CEE 32A 3P+N+E
Lifting: Housing for forklift forks
The Conrad LC50R dust suppression gun is equipped with PLC touch screen electronics that are easy for any operator to use.
The use of the PLC is essential to precisely set the rotation from 0° to 340° of the cannon in order to make the most of the spray range and act more precisely on the areas to be treated.
And with CANNONI-CONRAD's INDUSTRIA 4.0 KIT, the dust suppression gun will receive 20% in the form of a tax credit.
The bikini version has a cannon set-up divided into two: the cannon with fifth wheel installed at altitude and the control block with PLC and pump positioned on the ground.
The articulated boom version of our spray cannons is versatile and popular in both the demolition and waste management sectors. The articulated boom allows a height of 5.5 metres, making it possible to reach and get close to the source of the dust. The articulated boom spray gun can in many cases be used to take advantage of a higher position with respect to dust generation and thus act more effectively and quickly on containment and reduction.
