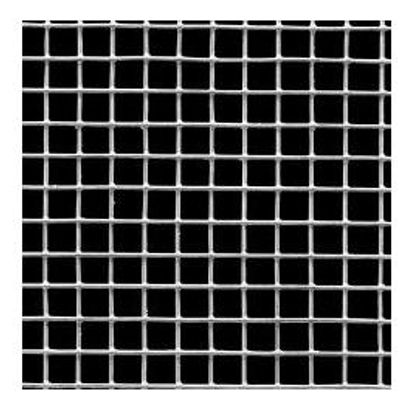

Mcnichols - Model 3402643610 -Square Wire Mesh
Square, HARDWARE & INDUSTRIAL CLOTH 1676, Galvanized Steel, Hot Dipped, Welded - Trimmed, 2 x 2 Mesh (Square), 0.4370" x 0.4370" Opening (Square), 0.063" Thick (16 Gauge) Wire Diameter, 76% Open Area. McNICHOLS® Wire Mesh, Square, HARDWARE & INDUSTRIAL CLOTH 1676, Galvanized Steel, Hot Dipped, Mill Finish, Welded - Trimmed, 2 x 2 Mesh (Square), 0.4370" x 0.4370" Opening (Square), 0.063" Thick (16 Gauge) Wire Diameter, Wire Ends Trimmed on Sides of Coil with Standard Overhang of 1/8" or Less, Random Cut Ends, 76% Open Area. ITEM 3402643610 - 36" x 1200" - In-Stock!
- Item Number 3402643610
- Product Line Wire Mesh
- Mesh Type Square
- Series Name HARDWARE & INDUSTRIAL CLOTH
- Series Number 1676
- Construction Type Welded
- Primary Material Galvanized Steel (GV)
- Alloy, Grade or Type Hot Dipped (HD)
- Material Finish Mill Finish
- Weave or Trim Type Welded - Trimmed
- Mesh Size 2 x 2
- Opening Size 0.4370" x 0.4370"
- Wire Diameter/Wire Gauge 0.063" Thick (16 Gauge)
- Wire Diameter/Wire Gauge Chart View
- Pitch Size 0.5000" x 0.5000"
- Overall Thickness 0.126"
- Wire Ends Trimmed on Sides of Coil with Standard Overhang of 1/8" or Less, Random Cut Ends
- Percent Open Area 76%
- Weight 0.49 Lbs./Square Foot
- Product Form Full Coil
- Drawings CAD Drawing - PDF
- CAD Drawing - DWG
- Sizes (Width x Length)
- 36" x 1200";
- 72" x 1200" (Cut Sizes Available)
Wire Mesh has the strength to perform in industrial settings, the aesthetics to enhance architectural designs, and the versatility to fulfill a variety of functions. Routinely incorporated in signs, railing infills, cabinet inserts, plant screens and in other applications, this dynamic product family suits nearly any design. Its lightweight properties make it easy to cut-to-size and handle during installation. Our Wire Mesh products are available in multiple material types, including Aluminum, Brass, Carbon Steel, Copper, Stainless Steel and more! McNICHOLS carries an extensive selection of mesh and opening sizes, wire diameters and patterns. We also carry VINYLMESH™—a Galvanized Steel mesh that is PVC Coated for weather and corrosion resistance. If you are looking for a three-dimensional plant screen trellis option, look no further than ECO-MESH®!
