Yi-Yi - Standard Hexagonal Pillar
Hexagonal Pillar, Also Called Hexagonal Isolation Column, Hexagonal Spacing Column, Hexagonal Support Column, Hexagonal Column, Etc., Plays A Supporting And Connecting Role.
It is processed by the STAR dual-spindle CNC centering machine. First, use cylindrical cutter with 60°R0.4 corner to rough the outer diameter of the thread, and then use the cylindrical cutter with 35°R0.2 corner to finish the outer diameter of the thread, use the thread cutter to process the thread, and then use the 35° cylindrical cutter and the thread cutter to remove the thread burr. For the secondary spindle, first use cylindrical cutter with 55° R0.2 corner to finish the end face, and then use the 90°center drill to center, and then use the tungsten-carbide bit to drill the hole, and then use the tap to process the thread.
Hexagonal Isolation Column Made Of Brass.
Comparison Between SB Type Hexagonal Pillar And SN Type Hexagonal Pillar. The Products On Display Are All Brass, Which Can Be Called As SBB Hexagonal Pillar And SNB Hexagonal Pillar, And SN Type Is Compared With SB Type.

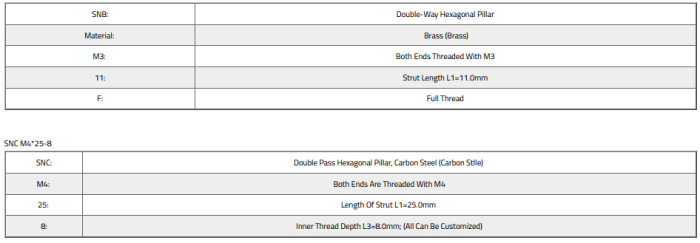

The Figure Shows SN Double-way Type, With Internal Threads At Both Ends Of The Strut, the Right Side Is SB Type, One End Is External Thread, And The Other End Is Internal Thread. SNB m3*11-F
