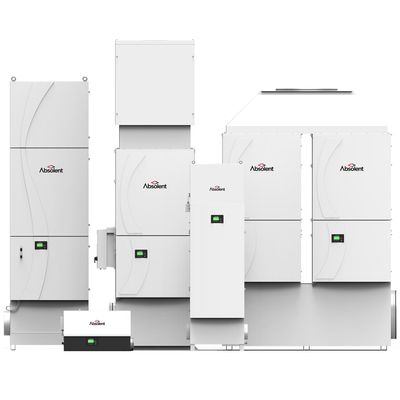

Filtermist - Model A Smoke -Static Filter Media

Absolent A•smoke oil filters have been designed to guarantee more than 99.9% separation of particles down to 0.3µm. The separating efficiency remains constant and does not deteriorate over time.

Absolent oil smoke filters provides a degree of separation that far exceeds today`s legal requirements and is therefore a sound investment for the future. The filters incorporate three filtration steps including two which are self-draining in order to allow continuous operation.

Absolent`s oil smoke filter units have been fire-tested and require very little service: they can run for 1-6 years without requiring a filter change.

• Oil smoke is hazardous to your health.
• CoSHH regulations require all airborne contaminants to be adequately controlled.

Model: Max. permissible air volume m3/hr

• A smoke5: 500
• A smoke20: 2000
• A smoke40: 4000
• A smoke80T: 8000
• A smoke80TF: 8000
• A smoke120: 12000
• A smoke160T: 16000

Absolent A•mist oil mist filters are well suited to applications such as:

• Heat-treatment
• Cold-drawing
• Gear cutting
• Grinding with straight oil
• CNC turning with straight oil
• Forging operations and cold pressing
