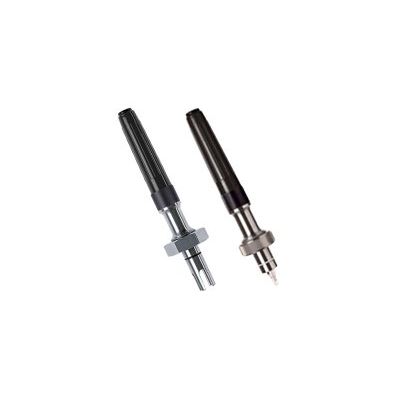

Model InFit761e -Static Housings
The InFit761e are static housings for quick and simple mounting of sensors with Pg 13.5 thread. They permit the use of a wide range of polymer and gel pH-electrodes, DO and conductivity sensors for measurements in chemical, biotech, pharmaceutical and food & beverage applications. The ideal positioning of the O-ring guarantees perfect sealing, permitting full CIP procedures to be performed without any compromise on stability. The CIP version housings used in conjunction with our safety weld-in sockets provide personnel, equipment and the environment with a high level of protection.
Specifications - InFit761e (Chemical, Biotech, Pharma and Food and Beverage Processes) - UPDATE!
Process conditions: Steel versions: 16 bar/140 °C (232 psi/284 °F); Plastic versions: PP: 4 bar/60 °C (58 psi/140 °F), 1.5 bar/80 °C (21 psi/176 °F); PVDF: 6 bar/20 °C (87 psi/68 °F), 3 bar/100 °C (43 psi/212 °F)
Wetted parts material: DIN 1.4435, DIN 2.460 /Alloy C22, Titanium, PP, PVDF
O-ring material: Silicone (MVQ)-FDA USP Class VI, Viton® (FKM)-FDA, EPDM-FDA, Kalrez® (FFKM)-FDA USP Class VI
Immersion length: 25 mm…375 mm
Adaption: DN25 weld-in socket, DN25 safety weld-in socket, Varivent, Tri-Clamp, NPT
Material Number(s): 25673
KALREZ and VITON are registered trademarks of E. I. Du Pont de Nemours and Company Corporation
Features and Benefits
- Hazardous areas approvals (ATEX and FM certificate).
- Specially smooth surfaces to prevent the adherence of microorganisms.
- Protective cage to protect the sensor against abrasive solids in the process medium.
- The housings using Ingold DN 25 process connections with CIP-design have been certified according to the strict guidelines of the EHEDG. All other CIP-housings are based on the same design principle and fulfill the requirements of 3-A Standards.
