Pfister Waagen - Static Railway Scale System

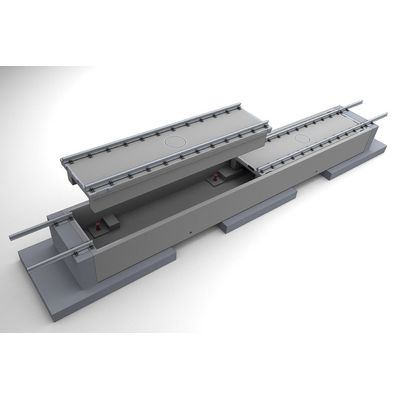

The PFISTER Static Railway Scale is an advanced weighing system constructed from precast concrete, offering precision and reliability built from years of experience. This system includes standard bridge lengths ranging from 4 to 12 meters. The modular design enables customization through the combination of individual foundations, allowing for varied total bridge lengths, with a maximum of four bridges combined. Standard foundation pit module lengths include single-piece foundations up to 14 meters, with one or two-piece possibilities spanning 14 to 16 meters, and multi-piece configurations for lengths beyond 16 meters. It is ideal for applications requiring precise mass measurement on railways, ensuring dependable performance and adaptability to different installation requirements.
Precision from experience – PFISTER static track scales made of precast concrete elements.
- Accuracy class , complies with PTB regulations and DIN standards
- load capacity according to UIC 71
- Weighing ranges depend on the bridge length. Weighing ranges up to 50 t for single bridges and up to 500 t for composite bridges (depending on the number of bridges)
- Delivery of high-quality precast concrete parts or on-site construction of a cast-in-place concrete foundation according to our plans
- For all common rail profiles and standard gauges
We offer the system “Precast concrete parts track scale” :
Standard bridge lengths from 4 to 12 m,
In addition, different total bridge lengths can be achieved by combining the individual foundations (maximum of 4 bridges can be combined)
Standard foundation tray module lengths:
1-piece foundation tray up to a length of 14 m
1- or 2-part foundation tray possible from 14 – 16 m length
2- or multi-part foundation tray with a length of over 16 m
- Optional: our recommendation for long service life and durability: to protect the rails and the scale construction: replaceable split plates for shock-free driving on the track scale.
