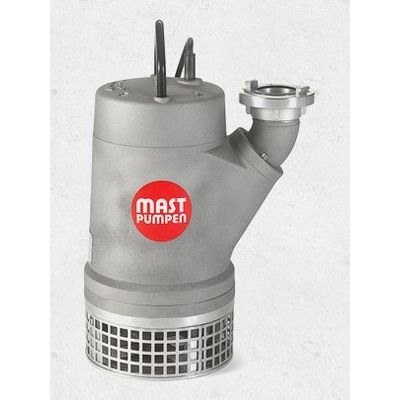

Mast Pumpen - Model T 12 -Submersible Pump

APPLICATION AREA: Dirty water. Immersion depth max: 20m. Max. Temperature of the conveying medium: 60 ° C. Liquid density max: 1.1 kg / dm³. pH value min: 5. pH value max: 8.

Most popular related searches

submersible pump

Engine: 3 ~ 400 V three-phase current
Power P1: 3 kW
Rated current: 5.5 A
Weight: 39 kg
Delivery head H (max.): 20 m
Delivery rate Q (max.): 1300 l / min
Connection size: G 2.5 ″
Grain passage: 15 mm
Connection line: H 07 RN-F 4 G 1.5 (20 m)
Connector: CEE 16 A 5-pole motor protection plug with on / off switch

Mast Pumpen - Model T 12 -Submersible Pump

Technical Specifications
