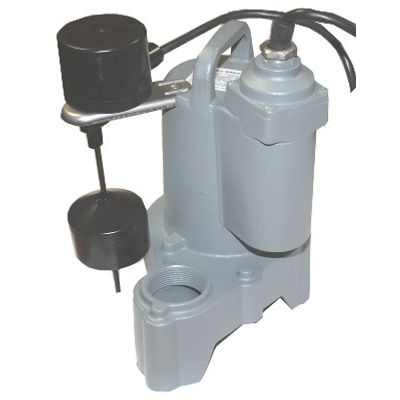

Model CFQ Series -Submersible Sump Pump

Submersible sump/effluent pumps designed to be used in a variety of residential and commercial application. Such as: Basement sumps, Dewatering, Utility, Effluent and Wastewater removal, Sump Drainage, Water Transfer etc.

Most popular related searches

submersible sump pump

sump pump

submersible effluent pump

float switch automatic

1/3HP, 1/2HP and 3/4HP
Class 30 cast iron construction
1-1/2”NPT discharge, Vertical
Single mechanical, Silicon Carbide, 300 series Stainless Steel Parts
Oil-filled motor with automatic reset overload provides safe operation
Ball bearing construction for long life
Piggy-back style float switch for automatic operation (Optional, Model "A")

Discharge - 1-1/ 2" NPT. Vertical
Solids Handling CFQ33/50: 1/2" (13mm), CFQ75: 3/4" (19mm)
Liquid Temperature 104 Degrees F. Contiuous
Motor Housing Cast Iron
Volute Cast Iron
Seal Plate Cast Iron
Impeller Cast Iron, 10 Vane, Vortex
Shaft Stainless Steel
Bearing (Upper & Lower) Single Row, Ball, Oil Lubricated
Hardware 300 Series Stainless Steel
Square Rings Buna-N
Power Cord 20ft quick disconnect cord w/plug on 120 volt, pressure grommet for sealing and strain relief. U/L and CSA listed 14AWG Type SJTOW
Motor (Single Phase)
- 3450 RPM, 60Hz, 115 Volts
- Nema L Includes Overload Protection In The Motor.
- Oil Filled, Class B
- Permanent Split Capacitor
Size 9" X 6" X 11"

Model CFQ Series -Submersible Sump Pump

Key Features

Technical Data:

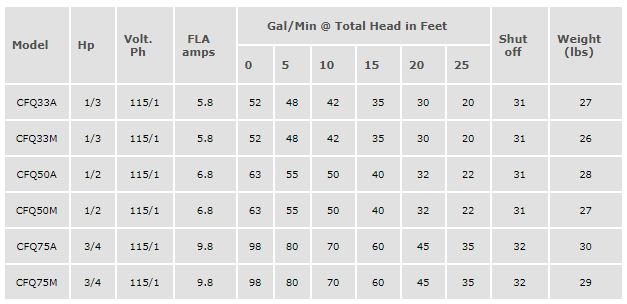

Performance
