RIVARD

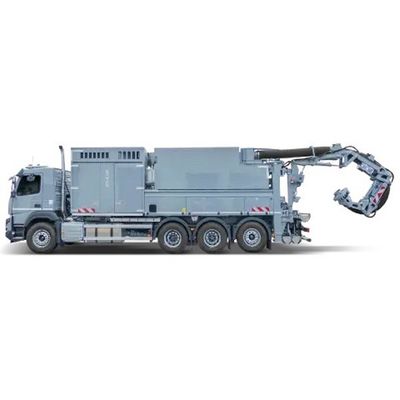

RIVARD - Model EXVAC -Suction Excavators
FromRIVARD
The EXVAC benefits from all RIVARD’s experience and offers excellent productivity, ergonomics, reliability and safety. The choice of the pump, the location of the filters, the transmission system, the design of the bucket, the articulation of the arm, the ease of access for maintenance, everything is thought to optimize the yields, to make the equipment reliable and to increase its operating life.
Most popular related searches
suction excavator
suction excavation
hydrostatic drive
flow control system
reverse camera
earth moving
suction pump
air filter cleaning
filter cleaning
noise emissions
Storage capacity:
- Total volume 10.5m³.
- Dumping height 1700mm
- Maximum dumping angle 800mm left
- 3 stability legs
Digging arm :
- 6 movements with variable rotary bearing
- 180° working area
- ∅ 250mm
- tipping arm folded/unfolded
Suction pump:
- Flow rate 25,000 to 30,000 m³/h
- Vacuum up to 0,4 bar – 0,5 bar,
- Soundproofed compartment
- 8 air power filters
- Cleaning cycles
- RIVARD pump
Transmission :
- Hydrostatic advance
- Radar AV
- Front and rear camera
Compressor :
- Vane type
- 186 m³/h
- operating pressure 7 bar
- dry/oil air reel 10m
- Hydrostatic drive
- Motorized steering
- Variable rotary arm bearing
- HP 160 bar 200l package
- Triflash
- Reversing camera with color screen
- LED light on the arm
- Dry air/lubricated reel 20m
- Equipotential reel 20m
Maneuverability :
- Suction in urban environment
- Hydrostatic advance
- Reduction of noise emissions
Safety :
- Driving aids
- 3 safety stands
- Secure access
Productivity :
- Large capacity bucket
- Folded/unfolded arm tipping
- Integral flow control
Equipment :
- Easy access to the nozzle
- Carrier longevity (patented delayed pump clutch)
- Simplified cleaning and maintenance
