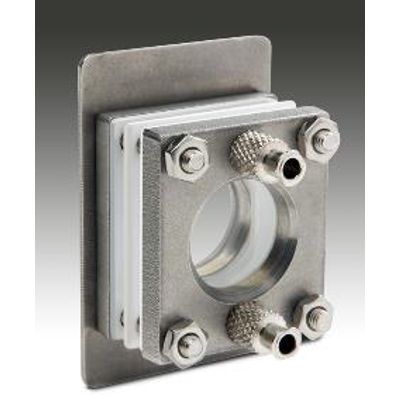

Spectral-Systems - Model CaF2 -Super-Sealed Liquid Flow Cells
The Spectral Systems Super-Sealed™ Liquid Flow Cells are designed and manufactured for continuous flow infrared transmission sampling applications. The large port diameter permits higher flow rates to speed feedback of component concentration. Spectral Systems Super-Sealed Liquid Flow Cells are designed for optimized laminar flow allowing the sample to flow with minimized lateral mixing. The proprietary seal technology used in our Super-Sealed Liquid Flow Cells provides for leak free operation, exceptional durability and maximum sample compatibility. The cell mount for the Super-Sealed Liquid Flow Cell is the standard 2.0" × 3.0" side mount to fit your FT-IR spectrometer.All Super-Sealed Liquid Flow Cells are manufacturedwith Luer Lock fill ports for convenient connection with flow tubing and peristaltic pumping systems.
The Super-Sealed Liquid Flow Cells are available with your selection of sampling pathlength and window materials. Window materials used in the Super-Sealed Liquid Flow Cells are of the highest quality composition and maximum flatness for precision quantitative analysis. For special applications we offer our Spectral Systems XP-BBAR™coating for our Super-Sealed Liquid Flow Cells to increase IR throughput of high refractive index window materials. For your convenience we offer factory calibration of any of our Super-Sealed Liquid Flow Cells.
- Rugged, heavy duty design compatible with continuous use
- Large IR port diameter to accommodate high flow rates
- Proprietary seal technology for leak free operation
- Designed for optimized flow
- Rectangular plate design to fit your FT-IR spectrometer standard slide mount
- Individually serialized to aide in record keeping and traceability
- Optional factory calibration for your convenience and method certainty
