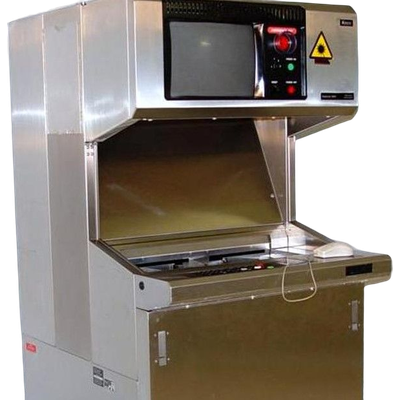

BSI - Model KLA Tencor Surfscan 6400 -Surface Inspection System
Bare Wafer Surface Defect Inspection System. The Surfscan 6400 is a highly advanced inspection system designed specifically for detecting defects on bare wafer surfaces. System can handle up to 200mm capable. Cassette Handling: Single puck handling from single cassette or platform. Substrate Thickness: Automatic adjustment within 2 mm range. Material: Any surface that scatters less than 90% of incident light
Most popular related searches
surface inspection system
inspection system
surface inspection
advanced inspection system
defect inspection system
wafer defect inspection system
wafer defect inspection
wafer inspection system
wafer defect
metrology
Defect Sensitivity
- - Most Surfaces: Better than 0.20 um (depending upon surface quality)
- - Polished Silicon: Better than 0.15 um at 95% capture rate
Repeatability Error:
Count repeatability error less than 1.5% at 1 standard deviation (Mean count greater than 500 for 0.364-um diameter latex spheres on bare silicon)
- Count Accuracy: Better than 99% as verified with VLSI Standards
- Relative Standard Spatial Resolution: 50 um spacing, minimum
- Dynamic Range: 0.1 um to 100 um in a single measurement
- - Up to 120 wafers per hour using 150 mm wafers
- - Up to 95 wafers per hour using 200 mm wafers
- Contamination: Less than 0.5 particles/cm squared greater than 0.20 um diameter per single pass
