Geolux - Model RSS-2-300W -Surface Velocity Radar

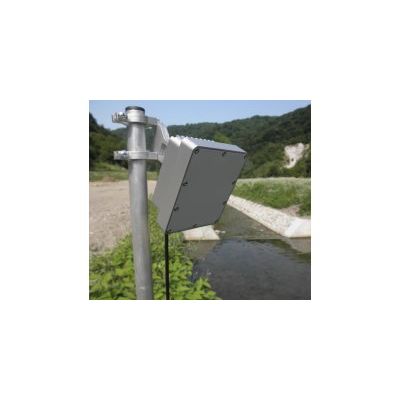

RSS-2-300 W flow meter is used to monitor flow velocity of open channels such as rivers, irrigation channels or sewer systems, and for monitoring and control of hydropower plants and wastewater treatment plants. The flow meter is also suitable for various mass flow metering applications in mining processing plants, industrial installations, and, due to operation without moving parts and robust mechanical design, is ideal for measurement of flammable fluids and harsh chemical applications.

The radar operates in K-band (at 24.125 or 24.200 GHz), and provides flow speed readings 20 times per second over serial (RS-232, RS-485) and CAN interfaces. Variety of supported communication interfaces and protocols enable easy integration with existing telemetry equipment and SCADA systems. Integrated tilt sensor measures inclination angle of the sensor and the flow velocity measurement is automatically cosine-corrected according to the measured mounting tilt angle.

Geolux RSS-2-300 W radar sensor is certified according to both European and American standards, and is being used worldwide.

Geolux provides a user-friendly RSS-2-300 Water Flow Radar Configurator PC software free of charge. The software connects to the RSS-2-300 W radar over serial port and can be used to configure radar operating parameters. Additionally, the Configurator utility also displays the measured flow speed over time.

The Configurator utility allows users to change the output data protocol, to select serial baud rate, change and configure various measurement and averaging algorithms, and to control the radar orientation.

RSS-2-300 Water Flow Radar Configurator runs on Windows XP or later, both 32-bit and 64-bit.

• Contactless surface velocity measurement
• Accuracy tested at Swiss Federal Institute of Metrology METAS and Brodarski Institut Labs
• RS-232, RS-485 Modbus, analog 4-20 mA interfaces in all models
• Remote configuration of all instrument parameters through any digital communication interface
• Robust small size IP68 aluminum or stainless steel enclosure

• Early flood warning
• Monitoring of flow and irrigation channels
• Accurate discharge monitoring in rivers
• Flow tracking in salt and copper mine channels
• Sewage and waste water discharge measurement

General Specifications

• Radar Type ; K-band 24.075 GHz to 24.175 GHz
• Doppler radar, 20 dBm EIRP
• Beam Angle ; 12° Azimuth, 24° Elevation
• Detection Distance ; 20 m above the water
• Speed Range ; ; 0.02 m/s to 15 m/s
• Resolution ; ; 0.001 m/s
• Accuracy ; ; 1%
• Sampling Frequency ; 10 sps
• IP Rating ; ; IP68

Electrical & Mechanical

• Input Voltage ; ; 9 to 27 VDC
• Power Consumption ; 950 mW operational, 85 mW standby
• Maximal Current ; < 250 mA
• Temperature Range ; -40 °C to +85 °C (without heating or coolers)
• Device Outer Dimensions ; 110mm x 90mm x 50mm

Interface

• Serial Interface ;
• 1 x serial RS-485 half-duplex
• 1 x serial RS-232 (two wire interface)
• Serial Baud Rate ; 9600 bps to 115200 bps
• Serial Protocols ; GLX-NMEA, Modbus
• Analog Output ; 1 x 4-20 mA
• SDI-12 Interface ; Available with optional add-on module
• Connector ; ; M12 circular 12-pin
