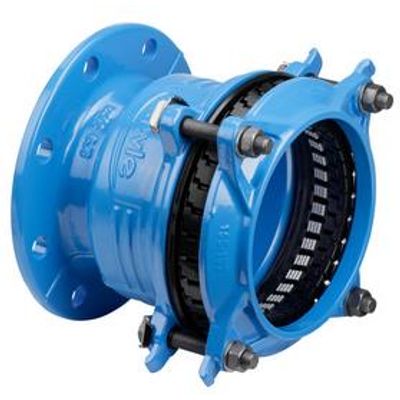

Hawle - Model 7994 -Synoflex Flange

• The Synoflex socket system provides high quality restraint connections to all common water supply pipes. The patented Synoflex secures steel, DCI, PE/PVC and AC* pipes with fully corrosion protected connections
• According to EN 14525
• Flexible gasket
• Flexible Synoflex grip ring
• Tension locks corrosion resistant. Each support element in the grip ring holds a tension lock element
• Bolts reversible 180°
• Angle compensation max. 8° (+/- 4° each socket)
• For restraint connections with PE pipes (PE ≥ SDR 17), a support liner No. 6035 is required
• Support element and grip element are pressed into one another. The grip elements does not fall off as a result of inserting of pulling the pipe out

*Warning! A restraint connection between Synoflex and asbestos cement pipes can’t be confirmed. Removal of the grip ring is not necessary.
