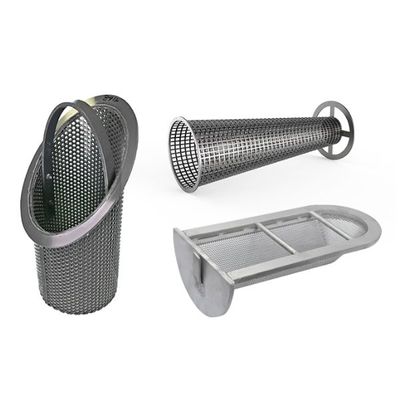

T Strainer Basket Filters with Simple Structure & Low Pressure Loss. T strainer basket filter is manufactured by welding stainless steel perforated metal or woven mesh onto the stainless steel frame. It is generally used in T type strainers to remove impurities from liquids, gases and low viscous fluids. It features great filtration performance, low pressure loss, good corrosion resistance, simple structure and long lifespan. T strainer basket filters are widely used in chemical, petroleum, food, pharmaceuticals, etc. T type basket filter is installed inside straight flow T type strainer to filter out large particulate impurities.

Most popular related searches

strainer basket filter

basket filter

basket strainer

filter strainer basket

When the fluid enters the basket strainer through the main pipe, the particle impurities will be trapped in the T strainer basket filter. The clean filtrate will be discharged from the outlet. The basket filter ensures the normal operation of equipment (including compressors, pumps, etc.) and instruments to realize stable filtration and ensure the safety production. When the basket filter needs cleaning, just take out the detachable basket filter, clean and reload it, and then put it into the main pipe for reuse.

Material: ss304, ss316, ss304L, ss316L
Operating temperature: -10 °C to +400 °C
Filter rating: 50 μm – 8000 μm
Filtration efficiency: 95%
Pressure: 1.0 Mpa, 1.6 Mpa
Applicable viscosity: 1–30000 cp
Filtration layer: perforated metal or woven mesh/perforated mesh

Filter liquid, viscous and gaseous media, great filtration effect
Simple structure, easy to install, remove and maintain
Reusable after cleaning, reducing the investment costs
Long service life
High temperature and high pressure resistance
Great corrosion resistance, acid and alkali resistance
