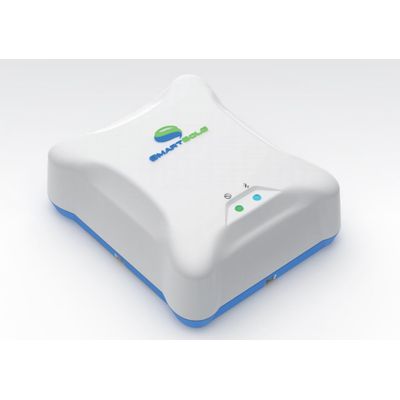

TB Recorder

SmartSolo TB Recorder is a support Bluetooth transmission data external record earthquake TIME BREAK TIME of high precision recording instrument, and to US level for a variety of excitation signal TIME to record. TB Recorder can be connected to the hammer switch, used to record the exact time of firing, stored in the built-in TF card can also be sent to the user through Bluetooth and mobile software. TB Recorder support pulse signal and closed signal trigger. The built-in buzzer can prompt the user to trigger completion. Built-in GPS/ Beidou antenna module, can achieve strong time recording accuracy and resolution.

SmartSolo TB Recorder with light weight compact size, IP67 waterproof, connector line less, simple operation, low cost, high reliable characteristics, This ensures that it can be used in urban underground space investigation, disaster and adverse geological body exploration, geological structure investigation, geothermal and water resources exploration, energy and mineral exploration, rail transit geological exploration, railway real-time early warning, short-period array observation, microseismic fracturing monitoring, vibration monitoring and other fields for high-density use. With hammer switch, SoloTB software to achieve accurate acquisition of firing time.

Physical Specifications
Operating temperature: -40°  ~  +70°C
Working Humidity: 20%~90% RH
Physical Size: 135.5mm(L)×114mm(W)×53mm(H)
Weight: 0.67kg
Data Storage: Built-in 8GB TF card
Waterproof: IP67
Electrical Indicators
USB: 1*Type-CUSB;1*Signal InputUSB
Status Display: 1*GPS LED; 1 * bluetooth LED; 1 * rechargeable LED; 1 * buzzer
ON-OFF: 1* Power switch; 1* Signal transfer switch
Charge Voltage: 5V,2A(varies according to adapter support agreement)
Charging Temperature Range: +3°C  ~  +45°C
Operating Life: built-in Battery runs for 60 hours
Timing Accuracy: ±1us
Time Resolution: 1ns
Type of built-in antenna: Built-in GPS antenna
