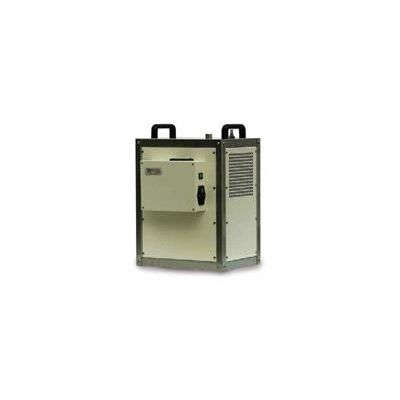

Water Cooled Portable Chiller - Model Isofrost 2 -TCR Tecora

ISOFROST 2 is born by the development of the previous cooling device known as ISOFROST. The new circuit even using a smaller size compressor, has more efficiency. In addition this new solution erases the need of using anti-freezing liquid because it has a built-in automatic system to defrost the internal exchanger*. If connected to the MCS condenser the ISOFROST 2 is able to measure the gas temperature at the coil exit. ISOFROST 2 is produced in a stainless steel compact and robust case.

Most popular related searches

water cooling

centrifugal pumping

temperature monitoring

liquid cooling system

liquid level alarm

Small size and practical handle make easier carrying and lifting the instrument, especially if the sampling point is not easily accessible.

Extremely compact size
Defrost liquid no needed*
Extremely simple to be used
High cooling output
Condensate temperature measure through external sensor
Cooling liquid tank
Built-in centrifugal pump

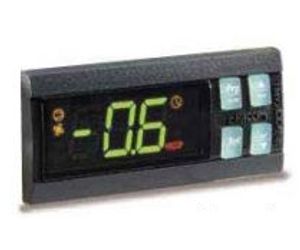

Single controller which leads all parameters
Built in defrost device
Cooling liquid low level sensor alarm
Tubes for the cooling liquid equipped with fast connection and thermo insulation

Cooling device nominal power: >400 W
Liquid tank capacity: 4 liters
Cooling temperature set point: 2 °C
R i-cirle pump nominal flow: 5 lt/min
Max prevalence liquid pump: 6 meters
Operating conditions: -20°C* +40°C
Power supply: 220V ac 50Hz (110Vac)
Weight (without cooling liquid): 22 Kg
P/N Number: AC99-003-0010SP (0011SP 110 Vac)
Size: 370mm x 320mm x 500mm (LxPxH)

* For temperatures below 0°C is requested the use of the anti-freezing liquid

Water Cooled Portable Chiller - Model Isofrost 2 -TCR Tecora

Small size and practical handle make easier carryi...

Main Characteristics

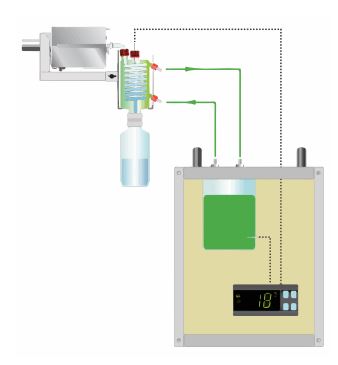

Scheme of Isofrost 2 and MCS Connection

Technical Characteristics
