Crodeon - Temperature and Humidity Sensor
Start measuring and remote monitoring your professional project using a reliable temperature and humidity sensor. Whether you want to monitor your agricultural project, a cold room, a farm, or on your construction site, Crodeon has got your back. Our humidity temperature sensor lets your measure the following parameters: dry bulb temperature, wet bulb temperature, dew point temperature and relative humidity.
Trusted Sensirion technology, assembled by Crodeon
At Crodeon we choose to trust in industry-leading technology, which is why our temperature humidity sensor contains a Sensirion chip. The SHT35 humidity and temperature sensor by Sensirion AG provides high accuracy and reliability.
For your ease assembled onto a 5m PUR cable with M12 connector for direct compatibility with every Reporter, our sensor module for remote monitoring. Every Crodeon sensor cable is extendable to fit your unique project.
The SHT35 is the high-end version of the SHT3x series, incorporating 15 years of knowledge from Sensirion, the leader in the relative humidity sensor industry. This sensor offers an accuracy of 1,5% RH and 0,1°C (factory calibration). The accuracy can be improved further through manual calibration via the Crodeon Dashboard, our cloud platform where you can watch your live and historic measurements.
Where to use your temperature and humidity sensor

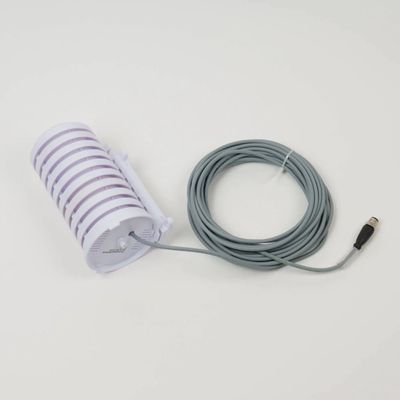

We recommend not using the indoor sensor in direct sunlight. When measuring in direct sunlight the outdoor humidity and temperature sensor should be used. With this option the sensor has been put inside a weather-proof radiation shield.
This relative humidity sensor comes with an on-chip PTFE foil membrane that allows for sensor use under harsh environmental conditions. The on-chip filter lasts over the total sensor lifetime. The indoor RH sensor comes with a double filter protection. An outdoor filter membrane for first layer protection and the on-chip PTFE foil membrane as a second layer.
Weight (including cable): 140 g
Height: 15 mm (sensor head)
Width: 15 mm (sensor head)
Depth: 91 mm (sensor head)
Cable length: 5 m
Accuracy (RH): +/- 1,5 (from 0% to 80%)
Accuracy (temperature): +/- 0,1°C (from +20°C to +60°C)
Resolution: 0,1°C and 0,1% RH
Weight (including cable): 160 g
Height: 178 mm (sensor head)
Width: 95 mm (sensor head)
Depth: 107 mm (sensor head)
Cable length: 5 m
Accuracy (RH): +/- 1,5 (from 0% to 80%)
Accuracy (temperature): +/- 0,1°C (from +20°C to +60°C)
Resolution: 0,1°C and 0,1% RH
