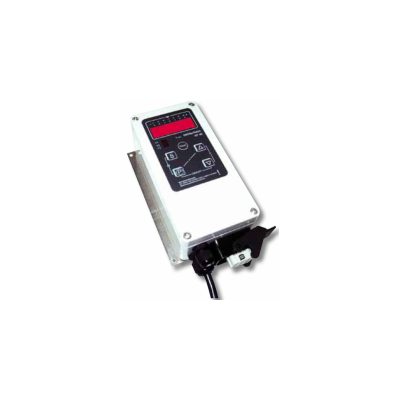

JCT - Model HT-41 / HT-42 -Temperature Controller with Limiter Function

Applications: Temperature controller for all JCT heated sample lines. For operation with elevated safety requirements due to limiter function. Also universally applicable. Also for operation of explosion proof heated sample lines in Ex-zone 2 applicable.

Most popular related searches

heated sampling system

digital temperature controller

setpoint temperature controller

sample temperature control

sample temperature controller

Long lifetime due to contactless switching
High switching capacity of 3680 W
Self programmable and free configurable
Pre-parameterised ex works on request
Robust compact design
Limiter function with permanent switch-off according to DIN/VDE 0721
Switch-off temperature adjustable (50°C....500°C)
Alarm relay for 6 A

PID-controller
Wall mounting housing IP 65
4-digit LED-indication
Membrane keypad with 4 push buttons
Alarm outlet with limit compensation (±10°C to set point)
Controller oulet with triac
Freely programmable
Auto tuning

JCT - Model HT-41 / HT-42 -Temperature Controller with Limiter Function

Benefits

Features
