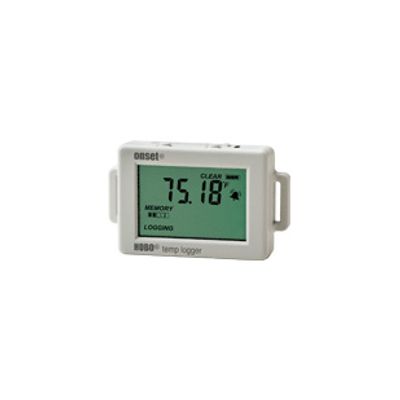

Hobo - Model UX100-001 -Temperature Data Logger

• Easy-to view LCD display
• Large memory capacity
• Visual high & low alarm thresholds
• New Burst and Statistics logging modes
• Compatible with HOBOware and HOBOware Pro software for logger setup, graphing and analysis

Environment:  The UX100-001 Data Logger is for use inIndoorenvironments

Measurements:  The UX100-001 Data Logger supports: Air temperature

• Temperature Sensor
• Range: -20° to 70°C (-4° to 158°F)
• Accuracy: ±0.21°C from 0° to 50°C (±0.38°F from 32° to 122°F)
• Resolution: 0.024°C at 25°C (0.04°F at 77°F)
• Response Time: 8 minutes in air moving 1 m/s (2.2 mph)
• Drift: <0.1°C (0.18°F) per year


Logger

• Logger Operating Range:
• Logging: -20° to 70°C (-4° to 158°F); 0 to 95% RH (non-condensing)
• Launch/Readout: 0° to 50°C (32° to 122°F) per USB specification
• Logging Rate: 1 second to 18 hours, 12 minutes, 15 seconds
• Logging Modes: Normal, Burst or Statistics
• Memory Modes: Wrap when Full or Stop when Full
• Start Modes: Immediately, Push Button, Date & Time or Next Interval
• Stop Modes: When Memory Full, Push Button, or Date & Time
• Restart Mode: Push Button
• Time Accuracy: ±1 minute per month at 25°C (77°F)
• Battery Life: 1 year, typical with logging rate of 1 minute and sampling interval of 15 seconds or greater
• Memory: 128 KB (84,650 measurements, maximum)
• Download Type: USB 2.0 interface
• Full Memory Download Time: 20 seconds
• LCD: LCD is visible from: 0° to 50°C (32° to 122°F); the LCD may react slowly or go blank in temperatures outside this range
• Size: 3.66 x 5.94 x 1.52 cm (1.44 x 2.34 x 0.6 in.)
• Weight: 23 g (0.81 oz)
• Environmental Rating: IP50
