Carbolite - Model 2132 -Temperature Furnace Controller
The 2132 furnace controller is mainly used as an over-temperature protection device. All Carbolite Gero furnaces and ovens are designed to `fail safe` should control of the elements fail. None the less, use of an over-temperature protection device is recommended for situations where there will be unattended operation of the device or simply where protection of valuable loads or the furnace is required. The 2132 furnace controller is also used in some other products, for example where space does not permit the use of a larger format controller or when it is used as an end zone `slave` controller for 3 zone tube furnaces.
- Used where over-temperature protection using a completely separate instrument is prefered
- Unattended operation of the device or simply where protection of valuable loads or the furnace is required.
- The unit is fitted with a separate thermocouple and operates a contacter in the event of the set temperature being exceeded.
- The controller is a panel mounted device with a clear LED display
This controller is also used in for those furnaces and ovens in which the compact nature of the design requires the use of a smaller control device than the conventional 301

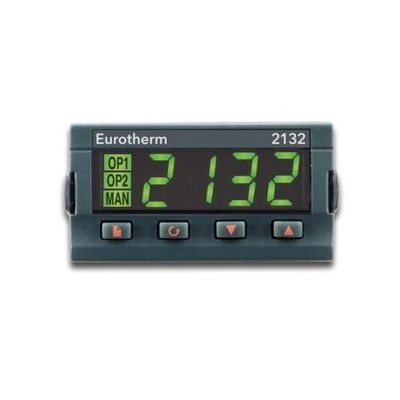

2132 Controller
- Control technology: Digital PID (porportional integral derivative) controller
- Display: Green LED numerical
- Control: 4 navigation buttons
- Basic functions: Either conmfigured for over-temperature protection or as single ramp to set-point controller
- Configuration: Panel mounted
- Dimensions H x W (mm): 35 x 78 (1/32 DIN)
