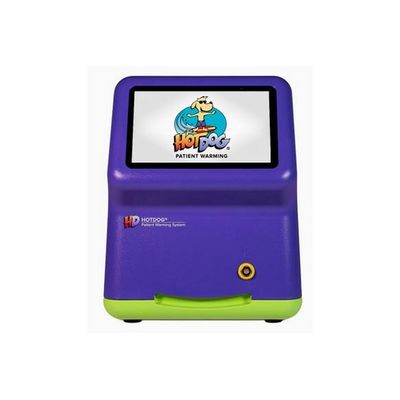

HotDog - Model WC77 -Temperature Management Controller - Multiport
The WC77 Multiport Controller provides maximum versatility and efficiency to patient temperature management, and brings the HotDog Patient Warming System to the forefront of advanced, patient-centered care. The aesthetics, touch screen interface, communication features, data feedback, and overall functionality are all designed to benefit the clinician and patient. It is compatible with older and current warming blankets, mattresses and cables.
7-inch Touchscreen with Intuitive User Interface
Reliable patient warming at your fingertips. Control all devices at once or individually by touch. Patient warming has been simplified so you can focus on other aspects of the procedure.
Temperature Monitoring
Patient core temperature can be displayed and output on the screen or an external monitor (this feature is CE Marked and Pending FDA Clearance). You can always keep track of your patient’s temperature from the start to the end of the procedure. Core temperature is always readily available on the interface.
Auto Mode
Temperature monitoring feature allows automatic control and adjustment of the warming devices based on the patient’s temperature (this feature is CE Marked and Pending FDA Clearance with temperature monitoring).
The WC77 Can Power Multiple Devices at Once
- Use up to 4 warming blankets with ports A (located on the front) through D at one time.
- Add a warming mattress with Port M to warm above and below simultaneously.
- Control all devices at once or individually to suit your needs.
- Input your temperature probe to enable temperature management with Tprobe.
- Export the temperature to an external monitor with Tout.
- Dimensions : 11” high x 7” deep x 8.75” wide (28 cm H x 17.8 cm D x 22.2 cm W)
- Weight : 6.25 – 7.15 lbs (2.8 – 3.2 kg) excluding clamp
- Mounting : Can be placed on a horizontal flat surface (i.e. table top), clamped to an IV pole, or hung using a VESA mount of either FDMI MIS-C (35 × 75 mm) or FDMI MIS-D (75 × 75 mm) specifications
- Temperature Control : Micro-processor
- Blanket Operating Temperatures : Blanket Ports A adjustable in 1oC increments
- 37° to 43° ± 1.0°C (98.6° to 109.4° ± 1.8°F)
- Mattress Operating Temperature : Mattress Port M adjustable in 1oC increments
- 35° to 40° ± 1.0°C (95° to 104° ± 1.8°F)
- Device Ratings : Input: 100-240 VAC, 50/60 Hz, 850VA
- Output A, B, C, D: 48 VDC, 480 VA Max each
- Output M: 336 VA Max
- Leakage Current : Meets UL 60601-1 and IEC 60601-1 requirements for Class I, Type BF equipment.
- Power Consumption : 850W maximum (during warm-up with all ports occupied)
- Certifications : IEC 60601-1; EN 60601-1-2; UL 60601-1; CAN/CSA-C22.2, No. 601.1, EN 55011
