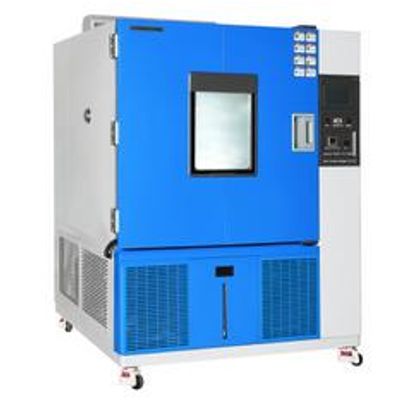

Symor - Temperature Test Chamber

Temperature Test Chamber aims to test products performance to withstand extreme high low temperature by simulating harsh climate condition, it can analyze and evaluate whether the products can meet required international standard and provides a good reference in product R&D stage, it’s widely applied on Electronics, Telecommunication, Automobile, Packaging, Aerospace, Electric products, etc. Climatest Symor Temperature Test Chamber capacity ranges from 50L to 1000L,Temperature Range: -70°C to +150°C.Customized parameters are also available.

Most popular related searches

temperature test chamber

test chamber

digital temperature controller

Electronics .Home appliance .Auto parts .Telecommunication .Aerospace .LED lighting

Controller

7” Japan UNIQUE UMC programmable controller
Resolution: temperature: ± 0.1 ?
Program:99 programs,999 sections,999 steps
USB interface for data download

Refrigeration

Original France imported “Tecumseh” compressor
Single compressor for -20?,Double compressors (cascade system) for -40? and -70?

Working chamber made by corrosion resistant SUS#304 brushed/mirror stainless steel
7" Japan UMC Programmable touch screen controller
France "Tecumseh" compressor
Air circulation for uniform airflow inside chamber by low noise fans
High low temperature alternating
50mm diameter cable port locates at the left side of the chamber
With large transparent viewing window and lighting inside to observe the test

Symor - Temperature Test Chamber

Application

Details

Features

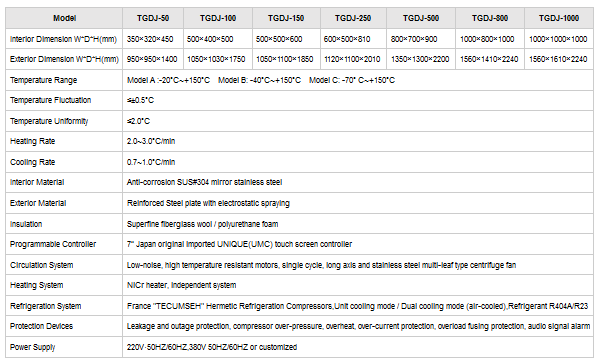

Specifications
