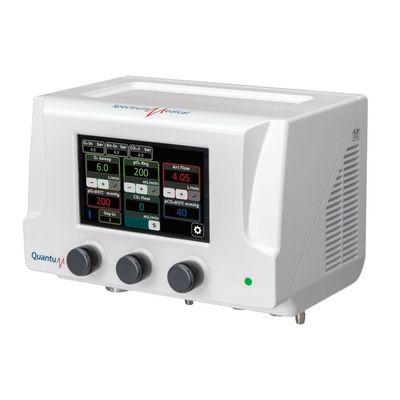

The Quantum Ventilation Lite
The Quantum Ventilation Lite is a world first solution designed to manage Membrane ventilation, including the blending of gases, integrated patient safety systems and perfusion diagnostics. The ultra-compact Quantum Ventilation Lite employs the very latest gas blending technologies to provide the user with a variety of features. The Quantum Ventilation Lite delivers precision regulated FiO₂, CO₂ with a sweep flow range from 0.025 to 10 L/m when flowing a single gas e.g. O₂ and up to a maximum flow rate of 20 L/m when modulating the delivery of two gases e.g. 60% FiO₂. To ensure system performance and safety the ventilation system has a fully integrated secondary monitoring system that continuously compares actual measured values with user defined set-points and activates an alarm when the discrepancy between the two systems is greater than 10%.
In ‘Patient Ventilation Mode’ the Quantum Ventilation Lite, combined with its patented PaO₂ and PaCO₂ measurement technologies, provides a decision support capability and an auto regulation function for the modulation of gas flows and gas concentrations when setting PaO₂ and PaCO₂ target values. To further improve patient safety the Quantum Ventilation Lite provides real-time monitoring of the following gas-ventilation parameters:
- Incoming Supply Pressures of Air, O₂ & CO₂
- O₂ and CO₂ Gas Concentrations & Pressures to the Oxygenator
- Overall Gas Flow to the oxygenator (SWEEP)
- FeCO₂ concentrations
Integrated within the Quantum Ventilation Lite is Spectrum Medical’s full range of Non-Invasive Diagnostic and Calculated Physiologic Measurements. To further improve usability the system includes the measurement of Flow (including bubble detection), Pressure and Temperature.
