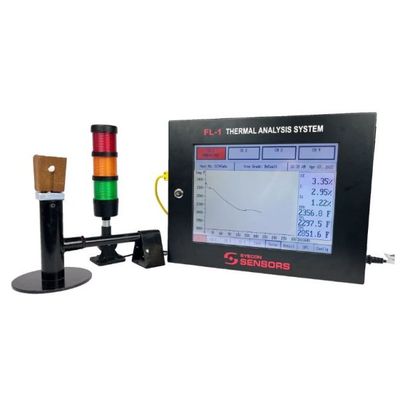

SYSCON Sensors - Model FL-1 -Thermal Analysis System

SYSCON designed and built the popular Electro-Nite Quik-Lab and Datacast digital thermal analysis instruments, beginning in 1978. The SYSCON FL-1 builds from that familiar software platform and is ideally suited for use with SYSCON Sensors Sampling Cups, Thermocouple Tips and Lances.

• Same familiar software used in popular Electro-Nite Quik-Lab and Datacast models.
• 15” easy-to-read, glove friendly, touch screen display
• Optional HDMI port for large overhead display screen
• High overall instrument accuracy of ±3°F (±2°C)
• Statistical Process Control for advanced analysis
• Programmable for user-specific applications
• USB and Ethernet ports for data transfer and network connectivity
• Rugged, dust-proof, NEMA box ideal for Foundries and Steel Mill environments

• Input : 4 Thermocouple Inputs
• Thermocouple Type : 3 Type K and 1 Type S
• Process Variables Measured :
• Cooling Curve Temperatures
• %CE, %C, and %Si
• Shrinkage Factors
• Brinell Hardness
• Tensile Strength
• User Defined Variables (up to 5)
• Thermocouple Calibration Standard : IPTS 48 or IPTS 68
• Instrument Accuracy : ±3°F (±2°C)
• Operating Temperature : 32°F - 122°F (0°C - 50°C) (Non-Condensing)
• Recommend Measurement Temperature Ranges :
• Type S: 400°F - 3182°F (205°C - 1750°C)
• Type K: 400°F - 2462°F (205°C - 1350°C)
• Storage : 1000 measurements per channel
• Connectivity : 1 Ethernet, 4 USB
• Input Power : 90-265 V AC 50/60 Hz
• Dimensions : 17" W x 13.5" H x 5.5" D (43 cm x 34 cm x 14 cm)
• Weight : 22lb (10kg)
