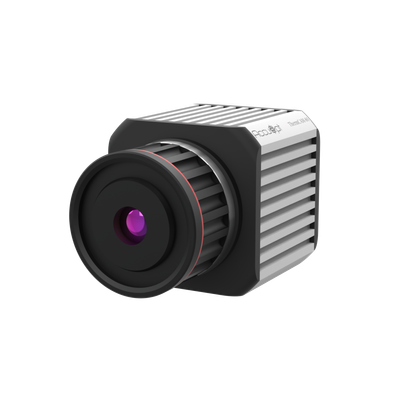

ThermCAM-80 Thermal imaging camera offers a broad range of applications across several different industries.

Currently industries are using spot temperature pyrometers to measure the temperature of critical points. ThermCAM-80 can replace such pyrometers with better area coverage and will also give individual pixel temperatures. Also, ThermCAM-80 has the advantage of showing the thermal image which makes it more suitable for continuous monitoring of critical assets. High resolution, like 640×480 pixels, is not always needed in industrial applications. Sometimes we just need to identify faults. So ThermCAM-80, 80×80 pixels, is the most economical solution. ThermCAM-80 Thermal imaging camera offers a broad range of applications across several different industries.

• Temperature range : -20 to 120°C | 100 to 1000°C (Switchable)
• Resolution: 80 x 80 pixels
• Frequency: Upto 25Hz
• Output: Ethernet, 4-20mA & Digital output

Most of industries or plants need to run continuously 24 hours a day, 365 days a year so in order produce faster, better and more efficient result at lower cost thermal imaging cameras are best option. Thermal camera are the most economic option for identifying failures before they cause any catastrophe.

1. They can identify positions like where connections are unsecured.
2. Motor inspection
3. Insulation inspection
4. Internal damage in plants
5. Conveyors inspection

Performance Specifications

• Temperature Range : -20°C to 120°C | 100°C to 1000°C (Switchable)
• Optical Resolution : 80 x 80 pixels
• Detector : Uncooled FPA Detector
• Frequency : up-to 25Hz
• Emissitivity : 0.01 – 1.0 adjustable
• Accuracy : ±2% of reading in °C or °K (Ambient temp @25°C)
• Spectral Range : 8 to 14 μm
• Sensitivity / NETD : <[email protected], 50Hz 300 K
• Pixel Pitch : 34 μm

Interface Specifications

• Video : 100MBit/s Ethernet
• Connection : Power Connector, RJ-45 Ethernet Connector
• Output : 4 – 20mA | 1 TTL output
• Video Format for Saving : MPEG-4
• Image Format for Saving : BMP/JPEG

Electrical Specifications

• Power Supply : 12 to 28 V DC
• Power Consumption : <4 Watt

Environmental / Mechanical Specifications

• Ambient Temperature : 0°C – 50°C
• Storage Temperature : -40°C – 70°C
• Relative Humidity : <95% non-condensing
• Shock Resilience : 25g
• Vibration Resilience : 2g
• Weight : ~550g (with 5.56mm lens)
• Protection Class : ~IP65
• Size : ~60 x 60 95mm (with 5.56mm lens)
• Mounting : UNC 1/4”-20, UNC 3/8”-16 Standard Mount

Additional I/O Module Specifications

• Analog Output : 4 Channel Analog Current Output (4 – 20mA)
• Digital Input : 2 Isolated Inputs
• Digital Output : 2 Relay Outputs
• Power Supply : 5 V DC

Lens Specifications

• Focal Length : 5.56mm (Standard Lens)
• Field of view : 28°(H) x 28°(V)
• Focus : Manual Focus

ThermCAM-80 has a thermal image processing software InfraView^TM at the core of a thermal imaging system which is customizable
with Client – Server Architecture for catering to multiple clients at the same time. The modular windows software InfraView^TM
can be configured / customized to cater to application / solution requirements.
Accuopt’s InfraView^TM software allows you to control the camera record, view, manipulate and store the captured video /
image as well as measured temperature data. This real time software allows simple and fast parameterization for
documentation of the temperature data for optimizing process control.

• ConfigurableROI’s:point, line,freeshape Ÿ Histogram and isotherm visualization
• Hot and cold spot detection
• Color palette scaling
• Trendcharts
• Alarm output
• Video and Image export
• Real time temperature measurement values
