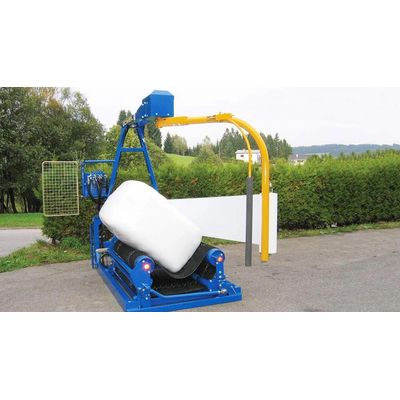

Göweil - Model G3010 Q -Three Point Square Bale Wrapper
The G3010 Q three point square bale is distinguished by its robust design as well as its low working height. The wide, continuous belt guarantees uniform wrapping of each and every bale - even if it is misshapen. The three point square bale wrapper is equipped with the STANDARD program control.
Most popular related searches
Technical data (basic model)
- Weight: 1,130 kg (2,490 lbs)
- Length: 2,705 mm (8’ 11”)
- Width: 1,720 mm (5’ 8”)
- Height: 2,760 mm (9’)
- For all bale dimensions: up to 1.20 x 1.40 m (up to 48” x 56”)
- Bale length: up to 1.60 m (up to 63”)
- Round bale diameter: 0.90 - 1.50 m (36” – 60”)
- Oil requirement:starting at 20 l/min (5 gpm) at max. 190 bar
- Bale weight round / square: max 1,800 / 1,000 kg (max. 4,000 / 2,200 lbs)
Required connections
- 1 pressure connection and one depressurized return for the supply of the wrapper (not applicable for PTO drive shaft)
- 3-pin power outlet for the electrical supply including direct supply line to the battery (cable cross-section 2x6 mm²)
