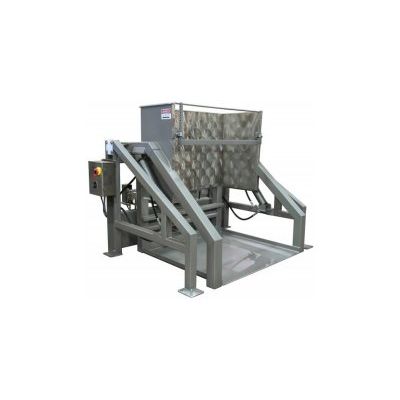

A-One -Â Model 3000 Pound Capacity -Tilt Dumper
Custom dump heights from 34” to 84”. Our Tilt Dumpers make it easy to dump vats, cardboard combos and most custom containers. With a muscular 5-horsepower integrated hydraulic power pack, rugged continuous solid pivot shaft and UHMW bearings, the Tilt Dumper is built for reliable performance. It’s constructed with durable, low-maintenance parts to keep things running smoothly. This powerful dumper is shipped ready to be plugged in and put to work.
Most popular related searches
hydraulic cylinder
sight glass valve
safety cage
welding glasses
gear pump
pressure gauge
stainless steel enclosure
pressure filter
stainless steel pump
V-Fold
- USDA Accepted
- Stainless Steel T-304 construction
- Integrated hydraulic power pack
- ¼” thick channel vertical uprights
- 7 & 11 gauge square tube framework
- 10 gauge liner
- 2 ½” diameter continuous pivot shaft
- Maintenance free UHMW pivot bearings
- ¼” and 3/8” thick reinforcement at pivot points
- 40 degree dump angle
- Fixed hold down bar
- (2) 3 ½” bore hydraulic tilt cylinders
- Floor level loading
- 3/8” thick bottom runners
- 3/8” thick mounting pads
- Complete controls with Allen Bradley components
- All continuous welds
- Glass bead blast finish
- Standard Power Pack Features:
- 5HP Motor
- Fixed volume gear pump
- Mounted on an integrated 13.5 gallon stainless steel reservoir
- Motor & Pump enclosed with a Stainless Steel Cover
- Powered up and gravity down operation
- Components include pressure gauge, filter and sight glass
- Counterbalance valves for safety of operation
- Tapered discharge liner
- Manual adjustable hold down bar
- Automatic adjustable hold down bar
- Vat seals to reduce product loss
- Pickle tank for collection of brine
- Dirt Barrier to prevent contamination
- 3/8” thick solid bottom
- Break-Away Bottom for use with pallets
- Extension stands
- Folding V-Mag arms
- Stainless Steel hydraulic cylinders
- Stainless steel fail-safe stops for cylinders
- Stainless Steel NEMA 4X enclosure
- Free-Standing Power Pack
- Various operating voltages
- Custom safety cages
- Portable units
- Larger lifting capacities
