J Solar Ltd

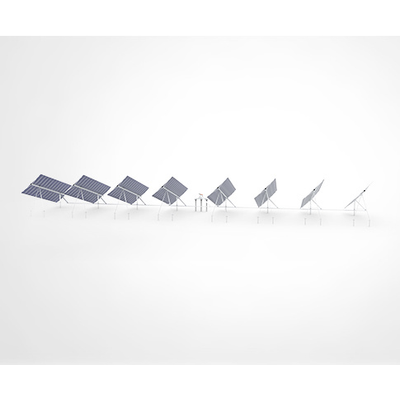

J Solar - Tilted Single-Axis Tracker
FromJ Solar Ltd
Tilt Angle: 5°~25°（Can be customized）. Driving Mode: Linear Actuator/ Slewing Driver. Power Supply: AC/ String/ Small Module Power Supply. Day Power Consumption: 0.3kWh. Max Wind Load at Stow Position: 56m/s. Tracking Angle Range: -60°~ +60°.
Most popular related searches
- Tracking Accuracy: ≤?1°
- Backtracking: Yes
- Nominal DC Power: ≈400kW
- Corrosion Protection: Pre-Galvanized /Hot-Dip Galvanization/ZAM
- Max Working Wind Load: 20m/s(Can be customized)
- Working Temperature: -40°C~65°C
- Control System: MCU/PLC
- Control Algorithm: Astronomical Algorithms + JLight
- Communication Mode: Wire/ Wireless
- Night Reposition Function: Yes
MULTI-DRIVE
EXTREMELY ROBUST
SPECIAL BEARING DESIGN
ADAPTABILITY: UP TO 25% SLOPES
ELECTRIAL SYNCHRONIZATION
LOWER INSTALLATION, O&M COSTS REDUCED SECURITY RISKS
QUALITY AND PROCESS CONTROL
FATIGUE TEST, LOAD TEST, IP TEST, PERFORMANCE TEST
BACKUP BATTERY - SUPERCAPACITY
NEVER STOP: Life-25 years
