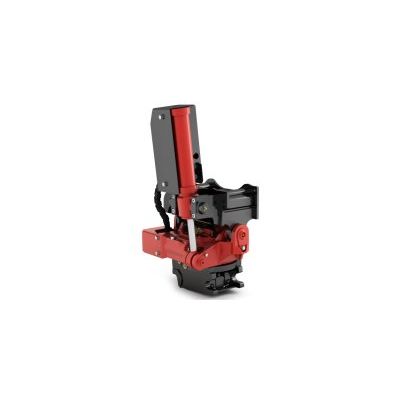

Rototilt - Model RT10 -Tiltrotators
The super-compact Rototilt® now adapted for excavators weighing 1.5-3.5 metric tons. Rototilt’s tiltrotator RT10 is a popular model based on the same robust technology used in the large models.
RT10 characteristics Incomparable performance
The combination of a long service life, light weight and hydraulics with low pressure loss gives the RT10 outstanding performance.
A lot to dig with
The RT10 retains the excavator’s qualities, as it is a compact design with a low weight.
Control system
As with other Rototilt® models, the RT10 is available for connection to both simple and advanced proportional control systems.
Sophisticated hose arrangement
The RT10 has a protected design with a sophisticated hose arrangement and fixed connection points on the attachment fitting.
Oil-filled for long service life
The RT10 is oil-filled for the best lubrication, naturally. This also means fewer lubrication points. When even easier lubrication is needed, optional single-point lubrication is available.
- Machine weight 1500 - 3500 kg
- Max bucket width 1000 mm
- Max breakout force’ 35 kN
- Max. breakout torque 25 kNm
- Weight (from) 75 kg
- Tilt angle (2x) 40°
- Rotation speed (1 turn in) 7.0 s at 15 l/min
- Working pressure 21 MPa
- Max return pressure 2.0 MPa at 25 l/min
- Recomended hydraulic flow max 20 l/min
- Nr of lubrication points 5
- Turn torque 1700 Nm at 21 MPa
- Tilt torque double acting cylinders 5800 Nm
