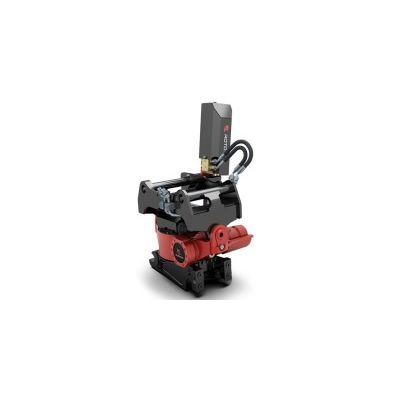

Rototilt - Model RT20B -Tiltrotators
The RT20B is the Rototilt tiltrotator in the 3-6 metric ton segment. It provides a smooth, responsive and more economical operation. The smart design also allows pressure and return lines to be connected on either the right or left side to fit all makes of excavator.
Most popular related searches
- Fuel efficiency
Thanks to the improved design, your machine will work more efficiently with reduced fuel consumption and lower power losses.
- Material selection
Best performance and lightest weight with components of the highest quality.
RT20B - Maximize performance and economy
- More responsive operation thanks to an improved hydraulics solution with the new tilt function moved out along the cylinder.
- Low weight through carefully considered materials choices and smarter design.
- Distributor block for single-point lubrication shielded by protective cover.
- The ability to connect pressure and return lines on either the left or right side means the model fits all makes of excavator (specified when placing order).
- Technically improved hydraulic motor for extended service life.
- Minimized pressure drop means lower fuel consumption.
- Improved harnesses mean more reliable operations and minimized risk of cable breakage.
- Its ability to connect pressure and return lines on either the left or right side to fit all makes of excavator.
- Improved economical operation with valves optimized for rotation and extra functions.
- Ease of service through improved access.
- Extended service life and optimal operational conditions achieved through the newly designed swivel.
- Machine weight 3000 - 6000 kg
- Max bucket width 1200 mm
- Max breakout force’ 45 kN
- Max. breakout torque 38 kNm
- Weight (from) 145 kg
- Tilt angle (2x) 40°
- Rotation speed (1 turn in) 7.0 s at 30 l/min
- Working pressure 25 MPa
- Max return pressure 2.0 MPa at 40 l/min
- Recomended hydraulic flow max 40 l/min
- Nr of lubrication points 5
- Turn torque 3900 Nm at 25 MPa
- Tilt torque double acting cylinders 14400 Nm
