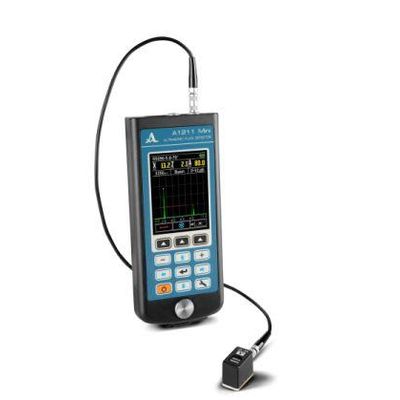

Model A1211 -Tiny Ultrasonic Flaw Detector

• testing of weld seams
• search of places of corrosion, cracks, internal stratifications and other flaws
• finding out the coordinates and evaluating the parameters of the flaws in objects from metals and plastics
• thickness measurement

A handheld full functional ultrasonic flaw detector, intended for ultrasonic inspection of metals and plastic, inspection of welding lines, thickness measurements.

The main feature of the device is its small weight and sizes, which allows working in difficult and cramped conditions, and also makes the flaw detector convenient for business trips.

The lightest flaw detector – only 230 grams with the battery.

Simple and easy-to-use menu of the main settings for promptly choosing and setting working configuration parameters and an intuitive interface allow professionals of any qualification level easily start working with the device.

The flaw detector has a high-contrast informative TFT display with the possibility o change the orientation of the image if the device is turned 90 degrees.

A small holder built in the body provides a reliable fastening on metal surfaces for easy work in difficult-to-reach places and on heights.

• Measurement of the signal levels and defects coordinates
• The ability to select the type of scale: mm - depth, µs - time
• Quick access to the control functions
• Three-level gate corresponding to the level of assessment of defects found (acceptance, reporting, examination) for correct sizing of defects across the thickness of an object of inspection
• Ability to display of A-scan signal and additional information: the speed of ultrasound, the thickness of the object of inspection, frequency signal reflection, gain
• Indication of exceeding the reference level - color, sound, vibration
• The battery level indicator
• Operational management of the unit backlight
• Discreteness of indicated measurements: 0.1 or 1 mm
• Communication with PC via USB
• Software for receiving data from the device and store it on your PC
• Specialized case to protect the electronics from dirt, dust and water, with the possibility of mounting to an arm
