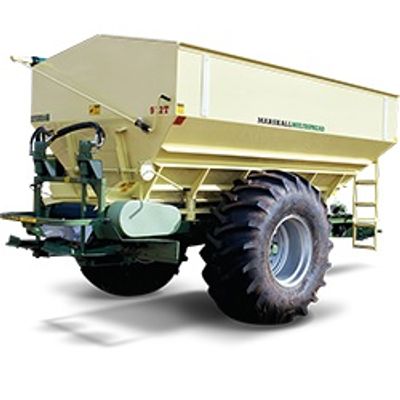

Roesner Marshall - Model 912T -Trailed Spreader

With it’s endless belt feed system the 900 Series has a proven record for long service life. The belt is a heavy duty fabric woven PVC, driven by an industrial grade rubber-lagged pulley and supported by low maintenance stainless steel rollers. This design ensures a low friction drive, reducing by startup and operating torque requirements. To aid the belt tracking, troughing rollers are fitted inside the chassis and a crowned front cage roller is used for quick and easy tension adjustment and cleaning.

The D Type spinner configuration has an overall diameter of 700mm, with four vanes, two short and two long and a stainless steel fertiliser chute for optimum placement of product onto the spinner discs. Spread widths of up to 36m between passes for fertilisers such as Urea, DAP and Superphosphate and up to 16m for non-granulated materials like Lime and Gypsum can be achieved. Minimal adjustment to spinner set-up is required when changing from granulated to non-granulated products. All testing during the development of the D Type spinners was carried out to Australian Industry standards. See the Spinner Technology page for more details.

*Maximum Spread Width is provided as a guide only and is dependent on wind conditions, fertiliser consistency, ground speed, spinner ground clearance and crop height.
