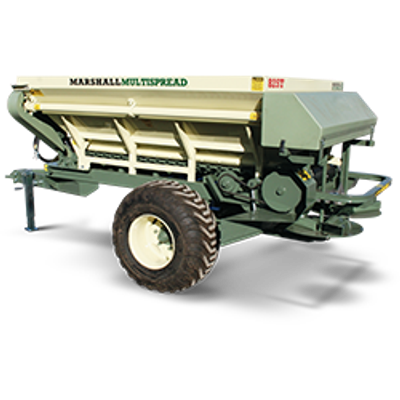

Roesner Marshall - Model 825T -Trailed Spreader

Feed System

The feed system on the 800 Series machines includes a 2-ply rubber belt attached to a high grade calibrated 10mm chain and drive sprockets, supported by wear resistant nylon skids ensuring a positive drive.

Type D Spinners

The D Type spinner configuration has an overall diameter of 700mm, with four vanes, two short and two long and a stainless steel fertiliser chute for optimum placement of product onto the spinner discs. Spread widths of up to 36m between passes for fertilisers such as Urea, DAP and Superphosphate and up to 14m for non-granulated materials like Lime and Gypsum can be achieved. Minimal adjustment to spinner set-up is required when changing from granulated to non-granulated products. All testing during the development of the D Type spinners was carried out to Australian Industry standards.

• 2.5 tonne nominal capacity
• PTO Drive
• 400/60×15.5 tyres
