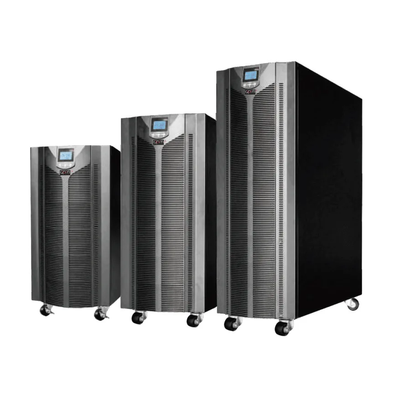

Anushri Systech - Model TURBO 10-30KVA HF -Transformer Less UPS System

DSP digital control technology. Active power factor correction (APFC), input power factor up to 0.99 Output power factor 0.9. Dual input. Wide input voltage range (190 V — 485 V). 50 I 60 Hz frequency conversion mode Work efficiency up to 98% in ECO mode Auto control fan speed when loads varies.

Most popular related searches

power factor

power factor correction

Auto power ON/OFF according to the load capacity set by users
LCD+LED display, multi-functional keys operation, friendly human-machine interface
Linear derating in low voltage input, reducing battery discharging times, extending the service life of battery Generator compatibility
Standard emergency power off (EPO) Standard maintenance bypass
Standard RS232/USB communication port
Optional RS485 / SNMP / AS400 communication port and SMS alarms Optional N+X redundancy parallel up to 6 units
Optional battery temperature compensation, EMD environmental sensors

Anushri Systech - Model TURBO 10-30KVA HF -Transformer Less UPS System

Features

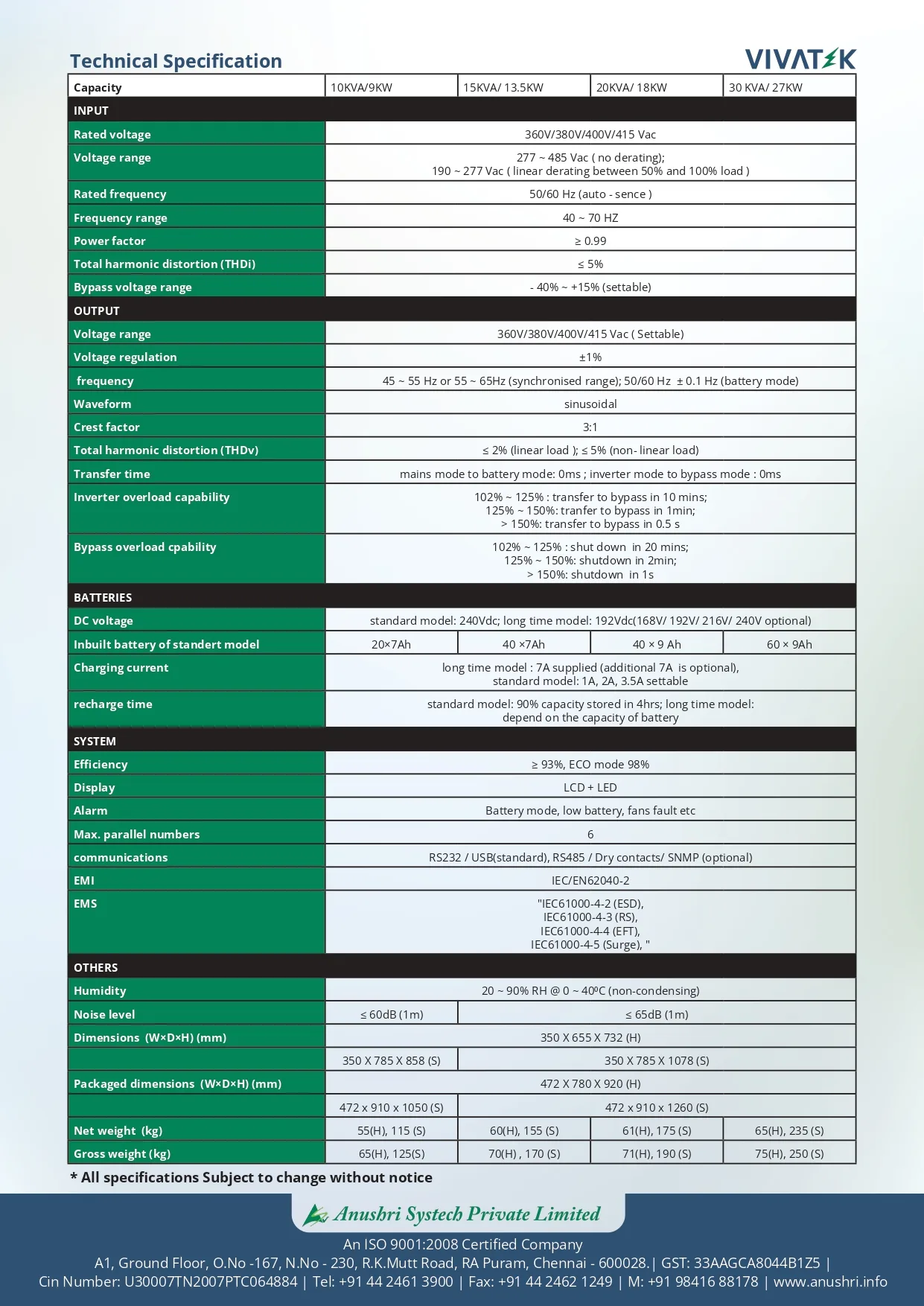

Specifications
