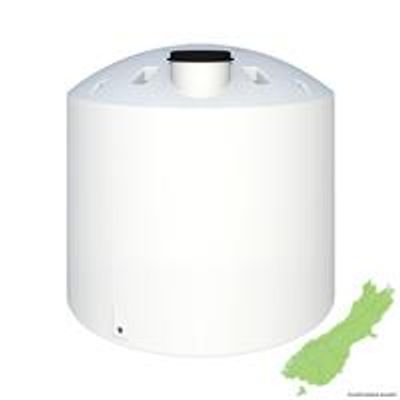

Model 10,000 LTR -Translucent Tank

10,000 litres (2,200 gallons). North Island Model: Width: 2.5 metres Height: 2.6 metres Outlet(s): 2 x 50mm (2 inch) brass BSP fittings. South Island Model: Width: 2.6 metres Height: 2.4 metres Outlet(s): 2 x 50mm (2 inch) brass BSP fittings.

Most popular related searches

water tank

manhole opening

polyethylene water tank

drinking water storage

manhole

manhole location

Full 20 Year Warranty (not a pro-rata)
Bury up to 500mm deep with clean backfill.
Level Markings NOT avalible

Code: TT10C
Empty weight: 225kg
Specific gravity – max: 1.0
Max working temperature: 30ºC
Raw material type: Medium density polyethylene
Raw material standards: AS/NZS 2070 – Food contact requirements
AS/NZS4020:2005 – Potable drinking water
AS/NZS4766 Polyethylene storage tanks for water
Complying water tank standard: AS/NZS4766 Polyethylene storage tanks for water
Manhole opening size: 435mm (located at 6 o’clock)
Diameter: North Island: 2.5m, South Island: 2.6m
Overall height: North Island: 2.6m, South Island: 2.4m
Overflow height: North Island: 2.2m, South Island: 2.1m
Overflow panels 4 off (1, 5, 7 & 11 o’clock)
Height to dome part line: North Island: 2.14m, South Island: 1.94m
Outlet size 50mm BSP (2 off)
Outlet – base to centre line: North Island: 100mm, South Island: 120mm
Maximum no. of moulded in outlets: 4
Outlet location(s) – standard: 1 & 7 o’clock
Other available locations – non standard: 5 & 11 o’clock
Lifting eyes: 4 (1, 5, 7 & 11 o’clock)
