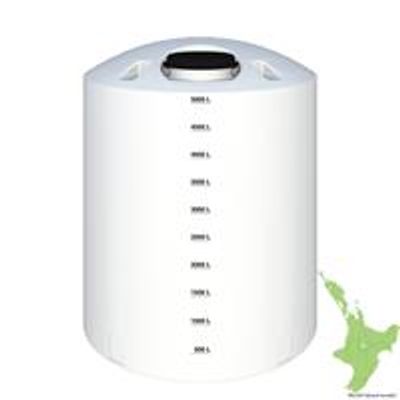

Model 5,000 LTR -Translucent Tank
5,500 litres (1,200gallons) – NORTH ISLAND ONLY. 5,000 litres (1,100 gallons) – SOUTH ISLAND ONLY. North Island model Width: 1.9 metres Height: 2.3 metres Outlet(s): 1 x 50mm (2 inch) brass BSP fittings. North Island model Width: 1.9 metres Height: 1.9 metres Outlet(s): 1 x 50mm (2 inch) brass BSP fittings.
Most popular related searches
water tank
manhole opening
polyethylene tank
drinking water
polyethylene water tank
drinking water tank
water storage tank
drinking water storage
manhole
manhole location
- Full 20 Year Warranty (not a pro-rata)
- Bury up to 500mm deep with clean backfill.
- Level markings by request
- Click on specification or download for more information
- Code: TT05C
- Empty weight: North Island: 112.5kg, South Island: 100kg
- Specific gravity – max1.0
- Max working temperature: 30ºC
- Raw material type: Medium density polyethylene
- Raw material standards: AS/NZS 2070 – Food contact requirements
- AS/NZS4020:2005 – Potable drinking water
- AS/NZS4766 Polyethylene storage tanks for water
- Complying water tank standard: AS/NZS4766 Polyethylene storage tanks for water
- Manhole opening size: 435mm (located at 6 o’clock)
- Diameter: 1.9m (North and South island)
- Overall height: North Island: 2.3m, South Island 2.0m
- Overflow height: North Island: 2m, South Island: 1.8m
- Overflow panels: 3 off ( 5, 7 & 12 o’clock)
- Height to dome part line: North Island: 1.94m
- Outlet size: 50mm BSP (1 off)
- Outlet – base to centre line: North Island: 110mm
- Maximum no. of moulded in outlets: North Island: 3
- Outlet location(s) – standard: North Island: 12 o’clock, South Island: 7 o’clock
- Other available locations – non standard 5 & 7 o’clock
- Lifting eyes: North Island: none, South Island: 3 & 9 o’clock
