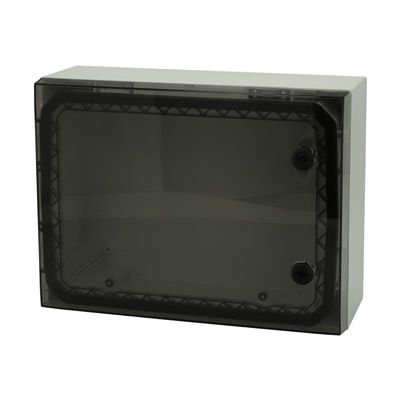

Fibox - Model ARCA 304021T No-MP -Transparent Hinged Bit Locking Enclosure

SHARE

Including: Cabinet enclosure with PUR gasket. 3mm double bit lock(s) with key, screws for mounting, and door guide. Part #: 8121023N. Dimensions: 11.81 x 15.78 x 8.26. Ratings: UL Type NEMA 1, 4, 4X, 12 and 13:IP66;IK10.

More about this product— External link
Most popular related searches
total halogens
gaskets

Product

  • Product nr: 8120023N
  • Description: Transparent hinged bit locking enclosure
  • Remarks: Transparent Cover, 2-point locking, hinges on the short side
  • Package: 1
  • Unit: Piece
  • EAN: 6418074089427
  • ETIM: EC000261 Enclosure/Switchgear cabinet (empty)

Dimensions

  • Height (inch): 11.81
  • Width (inch): 15.75
  • Depth (inch): 8.27
  • Height (mm): 300
  • Width (mm): 400
  • Depth (mm): 210

Materials

  • Material: Polycarbonate
  • Base color: RAL 7035 -light grey
  • Cover color: Transparent Grey
  • Gasket material: Polyurethane (PUR)

Temperatures

  • Temperature °F (continuous):  -40 … 175
  • Temperature °C (continuous): -40 … 80

Ratings

  • UL/cUL Type: UL/cUL 1, 4, 4X, 12 and 13
  • Ingress Protection (EN 60529): IP66
  • Impact Resistance (EN 62262): IK10
  • Electrical insulation: Totally Insulated
  • Halogen free (DIN/VDE 0472, Part 815): Yes
  • UV resistance: UL 508
  • Flammability Rating: UL94-5VA (f1)
  • Glow Wire Test (IEC 60695): 960 °C
