RIVARD
RIVARD - Model RIV1255 -Trenchers
FromRIVARD

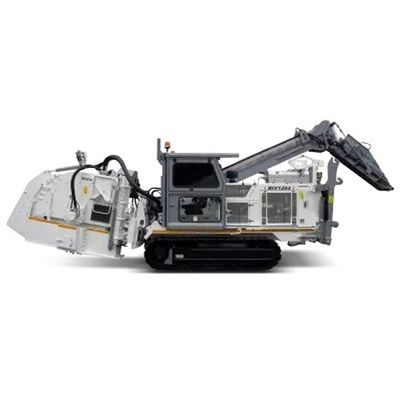

The RIV1255 is the ideal trencher for the deployment of networks under pavements or at the edge of the roadway thanks to its 400 mm offset. This compact and efficient trencher is also versatile thanks to its two TR104A and TR110T wheels, allowing the loading of materials, the unwinding and the mechanized laying of all types of networks.
Most popular related searches
RIV1255 :
- Carrier RIV1255
- Engine VOLVO 252hp
- Fuel tank 300l
- Hydraulic tank 280l
- Ad blue tank 25l
- Total weight of the set : 15 500kg
Offset track foot Right
Working dimensions (without conveyors):
- With TR104A : 10,5m x 2,3m x 4,35m
- With TR110T : 10,2m x 1,7m x 3,2m
Dimensions of equipment in transport, without conveyors :
- With TR104A : 9,7m x 2,3m x 3m
- With TR110T : 9,2m x 1,7m x 3m
Carrier speed :
- Slow (working) 0 to 750 m/h
- Medium (working) 0 to 1 400 m/h
- Fast (moving) 0 to 3 000 m/h
Trench width : 120 to 280mm (6 or 8 bolted elements according to trenching tool)
Trench depth: up to 1 100mm
Efficiency:
- Curved trench
- Rubber tracks
- Mechanized installation
Safety :
- Adjustable rotation speed
- Evacuation and loading of materials simultaneous to the trenching
Equipment :
- Front drum holder in option
- Hydraulic axial drive
- Evacuation/loading belt
Versatility :
- Multi-function tool
- Variable trench depth
- Radio controlled equipment
- Tube guides
- Picks
- Reel arm
- Sliding door
- Laying sleds
- Concrete chute
- Additional radio control
