Model 9065 -True RMS Data Logger DMM

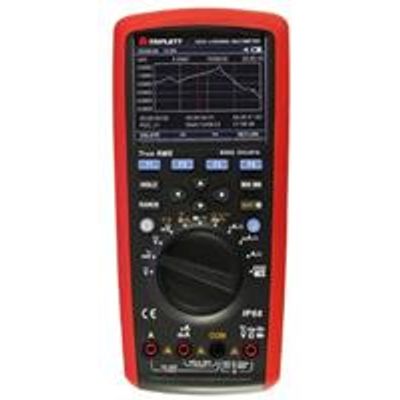

The Triplett Model 9065 is a 4-5/6 digit (60000 count) true rms data logger. It offers a large variety of measurement features including AC/DC Voltage, AC/DC Current, Resistance, Continuity, Diode Test, Temperature, Frequency and also the ability to record up to 20,000 measurements. Furthermore, the rubberized overmold provides sure grip and drop resistance. The high contrast display makes it easy to see at a distance or in dark locations and with a powerful rechargeable lithium-ion battery it can last for days. Overall, the Model 9065 is well suited for industrial applications that require a full featured data logger.
HOW TO TAME DIRTY POWER
Do you sometimes troubleshoot equipment that freezes “randomly”, requiring a hard reboot?
Ever had a client call after a new installation because the equipment “keeps locking up?
The Triplett 9065 Dirty Power Data Logging Multimeter is just what you need to both diagnose and troubleshoot, but most of all prove the power – not your equipment – is what’s causing the problem.
CERTIFICATIONS & MAX VOLTAGE
This meter conforms to UL STD. 61010-1, 61010-2-030, 61010-2-032, 61010-2-033, Certified to CSA SID. C22.2 NO. 61010-1,61010-2-030, IEC STD 61010-2-032, 61010-2-033 in pollution degree 2, measurement category (CAT III 1000V, CAT IV 600V), double insulation as well as with IP65 standards for water resistance and dustproofing.
APPLICATIONS
- Record and read back as many as 20,000 measurements for any application.
- Dual zone temperature measurements of enclosures, temperatures, plenums heat exchangers.
- Both diagnose and compare various test results through included PC software.
INCLUDES
- Test Leads (2) (red, black): CAT III 1000V – 10A
- “K” type thermocouple probe (2) rated up 475 °F
- Temperature Adapter
- Both charging Adapter and Connector
- USB data transfer cable
- Software CD (Windows OS Only)
- Carrying Case
- Manual
- 4 5/6 digit, 60000 count display
- Dual temperature input
- High contrast, full color display
- 54 Ranges
- Record up to 20,000 measurements
- DC Voltage up to 1000V
- AC Voltage up to 1000V
- AC/DC Current to 10A
- Frequency, Resistance & Capacitance Test
- Data Hold/Min/Max/Relative/Compare functions
- dBm/dBV Measurement for AC voltages
- Duty Cycle
- Diode Test
- IP 65 Rated Protection
- 3 year warranty
- 600Ω to 60MΩ Resistance range
- 60mV to 1000V AC/DC measurement
- 600uA to 10A AC/DC current measurement
- 60Hz to 60MHz frequency measurements
- Dual zone temperature measurements -40°F to 1832°F
- High Contrast, full color display
- 6nF to 60mF capacitance measurement
- CAT III rated
