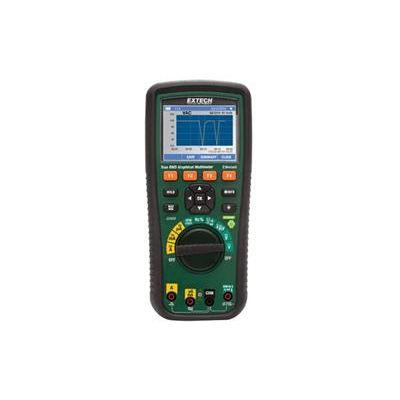

Extech - Model GX900 -True RMS Graphical MultiMeter with Bluetooth
The GX900 is a True RMS Graphical MultiMate with Bluetooth which transmits key electrical readings to Android mobile devices. The GX900 measures AC/DC current and voltage, resistance, capacitance, frequency, temperature, duty cycle, conductance, RPM, ACV bandwidth and diode continuity. The GX900 features a 50,000 count display with bargraph, a free Android app, data logging (to 2500 readings), Windows compatible software, peak hold, min/max/average modes, relative (%), data hold, automatic data hold and auto power off. Meter comes with double molded test leads, hanging strap, Type K bead wire temperature probe, PC software, and six AA batteries.
Most popular related searches
- Integrated Bluetooth® connects with most Android devices to transmit readings for remote viewing
- Works with free Android App to display large, easy-to-read values up to 30ft (10m) away
- Low Pass Filter conditions the inputs to provide accurate Voltage and Frequency readings on motors, drives and other large electrical equipment that generate electrical noise
- Datalogging stores up to 2500 readings with date and time stamp
- Windows® compatible software included for wireless transfer of logged data or recording data in real time
- True RMS measurements for accurate AC Voltage and Current measurements
- Dual sensitivity frequency functions
- Peak Hold (>1ms) Min/Max/Average / Relative (%) / Data Hold / Automatic Data Hold / Auto power off
- Backlit graphical dot matrix display allows for customized screens to optimize critical data within a measurement mode and provide visual menus for easy navigation to settings and ranges
- Complete with double molded test leads, hanging strap, Type K bead wire temperature probe, PC software, and six AA batteries
- Display Counts : 50,000 count with bargraph
- Basic Accuracy : 0.05%
- ACV Bandwidth : 100kHz
- DC/AC Voltage : 0.001mV to 1000V
- DC/AC Current : 0.01μA to 10A
- Resistance : 0.001Ω to 50MΩ
- Capacitance : 0.001nF to 10mF
- Frequency (electrical) : 40.00Hz to 10kHz
- Frequency (electronic) : 0.001Hz to 10MHz
- Temperature : -58 to 1832°F (-50 to 1000°C)
- Duty Cycle : 0.1 to 99.90%
- dBm/dBV : -70 to 60dB (nine selectable impedances)
- Conductance : 50μS
- RPM : 12,000rpm (with optional inductive pickup)
- Clamp Adapter input : 1mV/A, 10mV/A or user settable from 0.1mV/A to 100mV/A
- Diode (3.2V)/Continuity : Yes
- Dimensions : 9.25x4.25x2.5"(235x108x63.5mm)
- Weight : 1.85lbs (839g)
