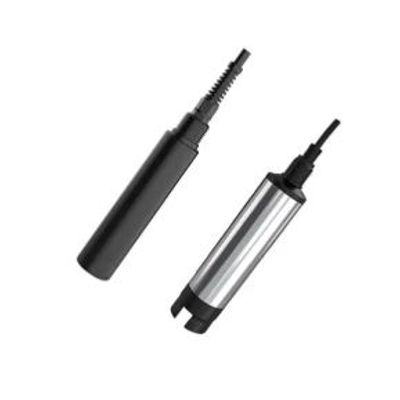

BlueTechFins - Turbidity Sensor

Measures water cloudiness from suspended particles using infrared LED technology to maintain clear, healthy aquatic environments.

• Water Clarity: Monitors particles that can clog fish gills and stress aquatic organisms
• Filtration Performance: Evaluates mechanical filtration effectiveness and guides maintenance
• Environmental Health: Detects pollution events and tracks system stability
• Algae Monitoring: Tracks algae blooms and organic matter accumulation

• 860 nm infrared LED unaffected by water color
• Built-in automatic cleaning brush to reduce fouling
• RS485 communication with Modbus protocol
• IP68 waterproof rating for harsh conditions

• Maintains optimal water clarity for fish health
• Prevents gill damage from suspended particles
• Optimizes filtration system efficiency
• Enables early detection of water quality issues

Installed in culture tanks, filtration systems, and water intake/discharge points for continuous turbidity monitoring and clear water maintenance.

• Power Supply : DC 10~30V
• Power Consumption : 0.2W
• Measuring Range : 0.0050.00 NTU; 0.0200.0 NTU; 0.01000.0 NTU; 04000 NTU
• Accuracy : ±5% FS (25°C); ±0.5°C
• Resolution :
  • 0.01 NTU (0.0050.00 NTU)
  • 0.1 NTU (0.0200.0 NTU)
  • 0.1 NTU (0.01000.0 NTU)
  • 1 NTU (04000 NTU)
• Temperature: 0.1°C
• Response Time : ≤30 seconds
• Working Condition : 0~40℃
• Working Principle : 90° light scattering method
• Using Life : 2 years in normal use
• Protect Class : IP68
