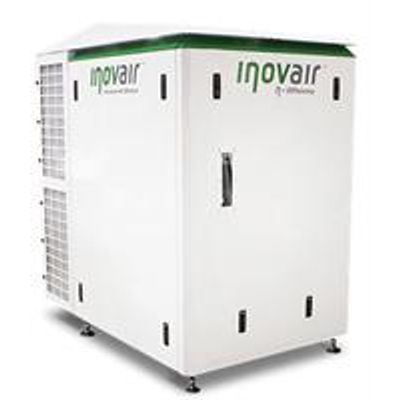

Inovair - Model IE Series -Turbo Blower
The Inovair IE series turbo blower is our most compact fully enclosed unit. The innovative design of the IE series delivers a high level of noise suppression, 75-85 dBA, while still providing quick access for ease of maintenance. This design combines our integrally geared compressor with a TEFC induction motor and other industry standard components to produce a reliable, cost effective turbo blower for general industrial applications. These design features, combined with 10-35% proven energy savings and long life expectancy, provide a high ROI and rapid payback. The Inovair IE series turbo blowers are the ideal solution for 30-125 HP applications that require a high efficiency, low noise solution. Combining our proven durability, best in class efficiency, ease of maintenance, and advanced airflow controls, the IE series blower package improves operational performance while significantly reducing operating costs.
- 10-35% energy savings
- Durable 2200 Inovair compressor capable of up to 2000 scfm
- Allen Bradley® PLC for intelligent control
- Industry-standard VFDs and TEFC motors
- Indoor or outdoor intake vents
- Less than 85 dba
- Touchscreen interface
- Removable access panels
- Annual maintenance intervals
- Energy efficient (~80% isentropic)
- Proven integrally-geared design
- Industry standard components
- Compact design
- Maintenance-friendly
- Engineered and built in the USA
- Handles fluctuating pressures
- Capable of multiple start/stop cycles every hour
- Greater process flexibility
- Flow Capacity 300-2000 scfm
- Design Pressure 4-22 psig
- Turndown Ratio Up to 2:1
- Motor Power 30-125 HP
- Drive Standard VFD
- Input Power 230V-575V, 60 Hz
- Impeller 5-axis machined 7075-T6 Aluminum
- Control System Integrated Touchscreen PLC
