Model Type 8860 -Two-Channel Conductivity/Resistivity Controller

FromGeorg Fischer Piping Systems Ltd

SHARE

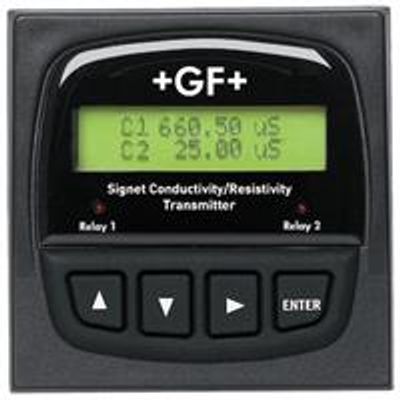

The Signet 8860 Two-Channel Conductivity/Resistivity Controller is packed with a set of features and capabilities ideal for the real needs of water treatment applications. It accommodates two separate and independent input sources and can be powered with AC/DC voltage. The 8860 programs via a simple and intuitive menu system. The unit can also be programmed to measure a raw conductivity value by turning off the temperature compensation mode.

Most popular related searches

conductivity resistivity

conductivity controller

wash water tank

conductivity electrode

RoHS compliance

water treatment

reverse osmosis system

cooling tower protection

Sensor Input: 2 inputs
Power Input: 12-24 Volts, DC, regulated
Current Output(s): 3, 4-20 mA outputs, isolated, passive
Relay/O.C. Output(s): 4 Relays, 3 Open Collector Outputs (switch-selectable)
Compatible with all Signet conductivity electrodes
Display: LCD, 2x16 alphanumeric characters

AC Line-Voltage or DC Powered
Up to Four (4) Programmable Relays
1/4 DIN, NEMA 4X/IP65 Enclosure with Self-healing Window
Two (2) Open Collector Outputs
Time Delay Relay Function
Simultaneous Display
Three (3) Fully Scaleable 4 to 20 mA Outputs
2-Channel Input
Display and/or Control: µS, mS, PPM or PPB (TDS), kOhm, MOhm, % Rejection, Difference, Ratio, °C or °F

Demineralizer Regeneration and Rinse
Desalination
Rinse Tank Water Quality
Aquatic Animal Life Support Systems
RO/DI System Control
Scrubber, Cooling Tower & Boiler Protection

CE
CUL
China RoHS
UL
RoHS Compliant
FCC
