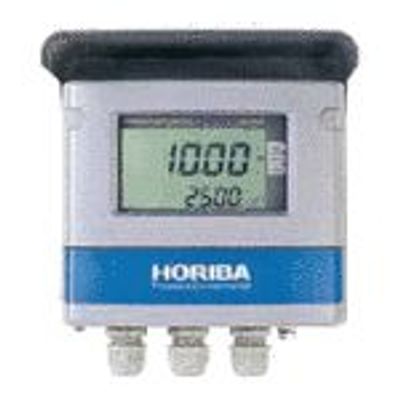

HORIBA -Â Model HE-300C -Two-Wire Transmitter
Suitable for continuous measurement of pure water or boiler water. Flexible temperature compensation.
Most popular related searches
electrical conductivity
electrical conductivity sensor
pure water
boiler water temperature
process water treatment
boiler water
conductivity sensor
water treatment
water boiler
TDS
- Repeatability
- Electrical conductivity: ±0.5% full-scale or less
- TDS conversion: ±1.5% full-scale or less
- Temperature: ±0.1˚C (for equivalent input)
- Linearity
- Electrical conductivity: ±0.5% full-scale or less
- TDS conversion: ±1.5% full-scale or less
- Temperature: ±0.5˚C (for equivalent input)
- Transmission output
- 4 to 20 mA DC Input/output insulated type
- Maximum load resistance 600 Ω
- Contact input
- One point Contact format: Non-voltage a contact
- Contact function: Transmission output is held for closed contact input.
- Temperature compensation range
- 0 to 100˚C (but for 0˚C or less, 100˚C or more, extend and perform calculation)
- Ambient temperature: -20 to 60˚C
- Temperature compensation element: Pt 1000 (0˚C)
- Calibration function
- Electrical conductivity: Based on input of cell constant correction coefficient (parameter input)
- TDS conversion: Conversion based on specified coefficient (0.30 to 1.00)
- Temperature: One point calibration compared with reference temperature gauge
- Self-diagnosis function: Sensor diagnosis error, Transmitter malfunction
- Power supply
- 24 V DC (operational voltage range: 21 V to 32 V DC)
- Power consumption 0.6 W or less
- Construction
- Outdoor installation type: IP65 protection level
- Mounting method: 50A pole or wall mounted
- Case: Aluminum alloy Mount fitting/hood: SUS304
- Compatible sensor: ESH series electrical conductivity sensor (cell constant 0.01/cm, 0.1/cm, 1.0/cm)
- Weight: Approx. 4 kg
- Equipment protected: CE marking, FCC rules
