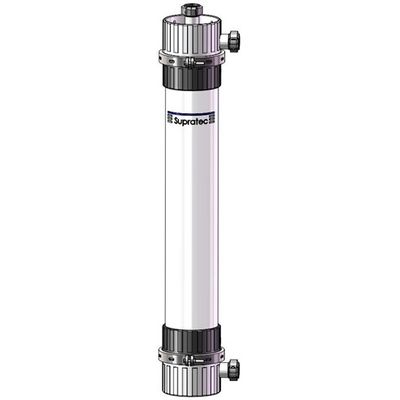

SUPRATEC - Model HP2280 -UF Pressurized Module
The Supratec HP2280 UF Pressurized Module is designed for superior water and wastewater treatment applications. Featuring advanced hollow fiber technology, the module integrates a modified polyvinylidene fluoride (PVDF) membrane on a robust carrier, offering a pore size of 0.03 µm. With a high design flux, the module minimizes required membrane surface area, enhancing efficiency and reducing installation footprint. The system can handle waters with high suspended solids and biologically treated effluents, maintaining excellent filtrate quality. Tolerant to a wide range of solids and exhibiting high specific flux, the membrane manages varying contaminants effectively. It is equipped with an air scour system for easy cleaning, even in high solid-content scenarios, and operates under minimal energy consumption. The modules support a dead-end flow, outside-in filtration method, withstanding a range of pH levels and high chlorine concentrations, ensuring durability and reliable performance.
- Filtrate Flux (20°C) : 40 – 120 l/m2·h
- Flow Range : 3.0 – 9.5 m3/h
- Temperature : 1 – 40ºC
- Maximum Inlet Pressure (water) : 4.0 bar (20º C)
- Maximum operation (TMP) : 2.1 bar
- Typical operating pressure (water) : 500 – 1000 mbar
- Maximum Air scour rate per module : 12 Nm3/hr
- Typical operation Air Scour Rate per module : 5-10 Nm3/hr
- Back flushable : Yes
- Max. backwash pressure : 1.0 bar
- Operating pH : 2.0 – 11.0
- Max. chlorine tolerance (NaOCl) ; 2000 mg/L
- Solid tolerance (TSS) ; 500 mg/l
- Turbidity (max.) ; 600 ntu
- Particle size (max.) ; 1000 µ
- Expected filtrate – SDI ; ≤2.5
- Expected filtrate turbidity ; ≤0.1 NTU
- Type ; Dead end flow, Outside In
- Fiber ; Supported Hollow Fiber
- Support ; PET
- Membrane area per module ; 75 m2 (nominal)
- Module volume ; 39 Liters
- Weight (empty/ water filled) ; 55kg/94kg
- Permeate connection diameter here is inner diameter.
- Shipping weight depends on packing material and quantity
- Module membrane area could be with slight variation but always in application
- Product options: Standard is grounding mounted with feet, suspension and lifting is
Storage and Protection
Supratec UF Membrane Cassette should be stored in proper environment. Once the modules come in contact with water or put in use, they should never be stored dry. Typically for long-term shutdown (>7 days), the modules should be cleaned and immersed in proper solution. All cleaning, storage and operational procedures should be based on actual O&M manual provided by Supratec.
Service and Technical Support
Supratec provides a full range of products with different sizes. The design information provided is for the most common products, and Supratec should be consulted for other sizes and requirement if requested. Supratec has an experienced team available to answer questions and provide reasonable technical support.
